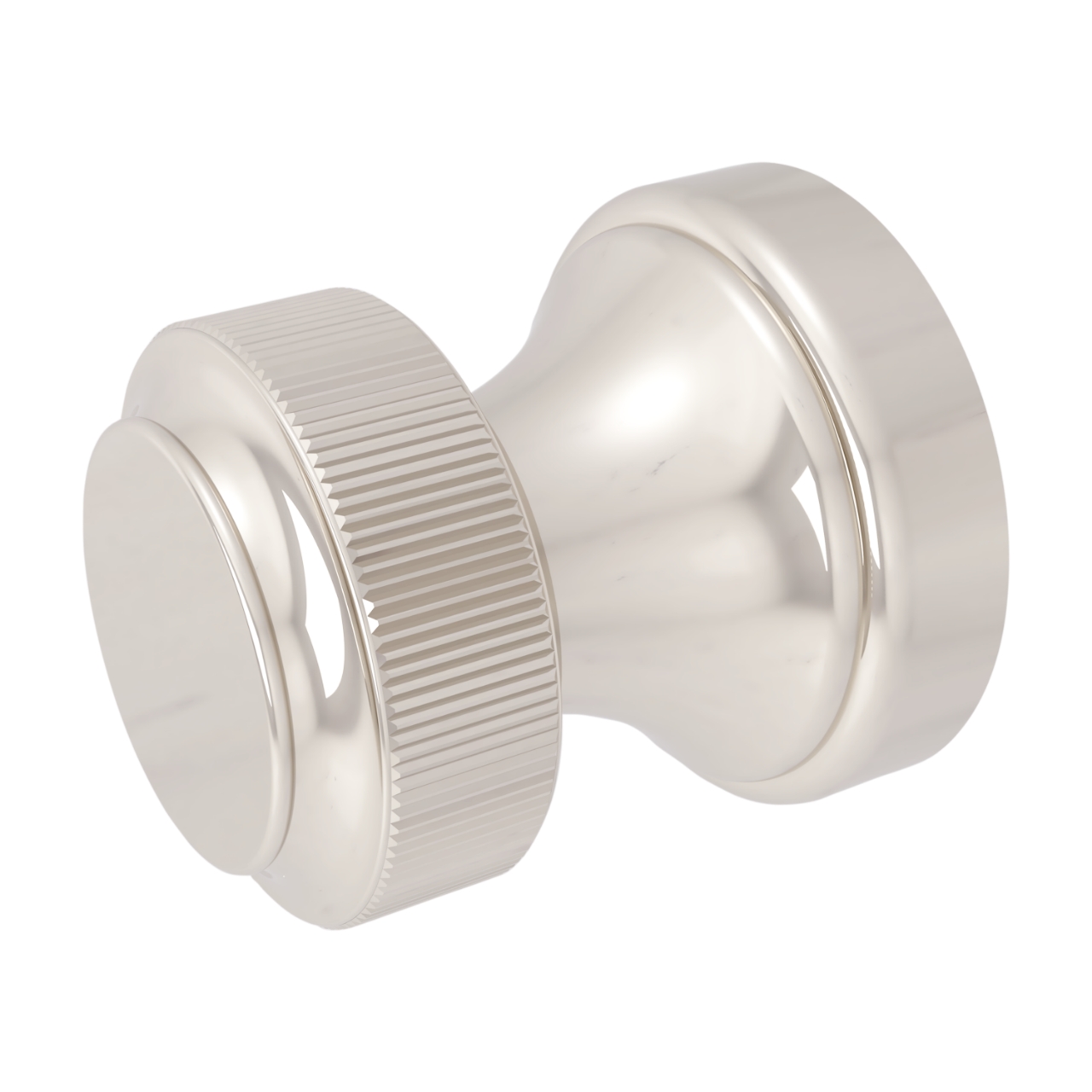

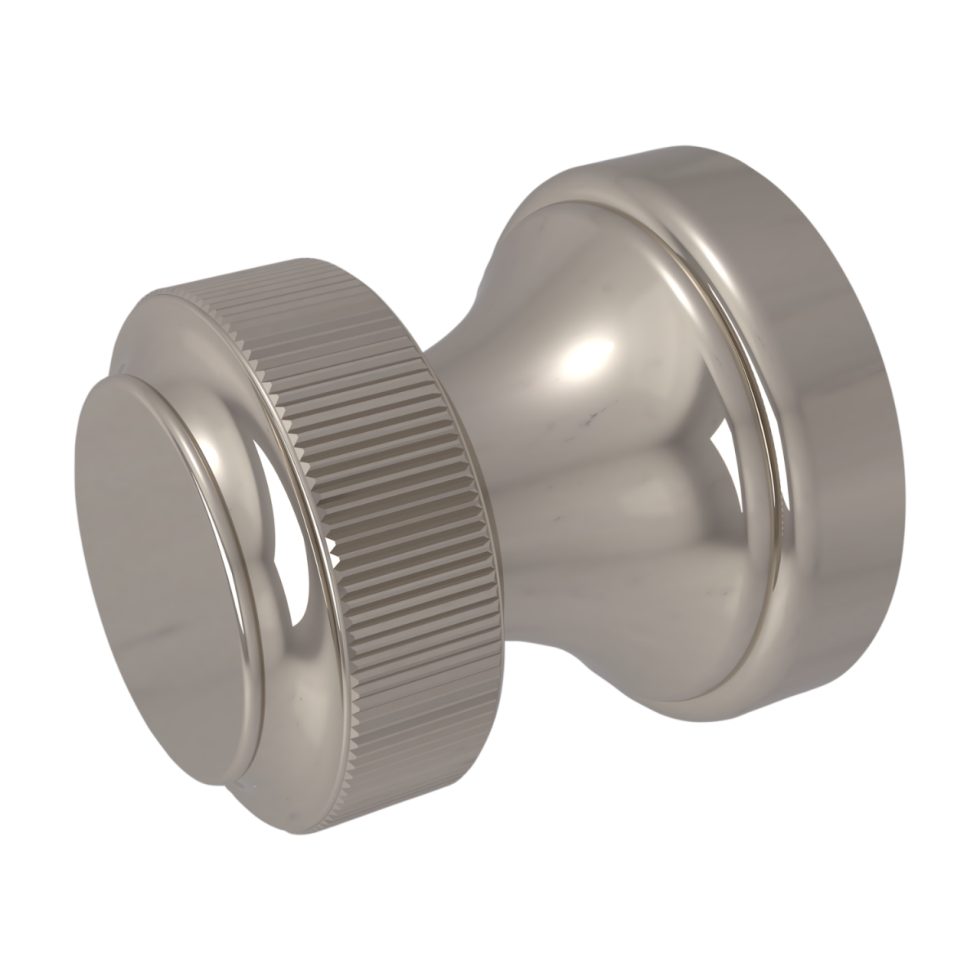

Knurl Wall Mounted Handle

A low profile pure silhouette defines this unit. Accentuated by its textured lines around its edges for ease of use.

Available in 1/2″ and 3/4″ NPT.

Description

Knurl Wall Mounted Handle 1/2″ details



HALLMARKS & COMPONENTS
TECHNICAL INFORMATION
  • Wall-mounted ½” valves-
  • Total height: 2 ½”
  • Width: Diameter 2 ¼”
  • Available in all finished. All finished are unlacquered
  • Restricted Flow rate : 1.2 GPM (4,5L/min) at 40 PSI
  • Unrestricted flow: 9GPM at 50PSI to 12 GPM at 70 PSI
  • Valves: ceramic disk (½”)
  • Made with no lead brass; includes possible ABS components
  • rough- in included
  • Ref number for ½” valve: 12906730
  • Rough In-Depth: Minimum 234” – Maximum 518
  • Hole diameter: 1.1/8” ( 3 cm )
  • Water pressure maximum:60 PSI
  • Recommended pressure:  40 to 45 PSI
  • Connection: ½” NPT
  • Handle spread: N.A.
  • Metric threading available on request
  • Flow rate for outside the USA: inquire
  • unrestricted flow: 9 gpm at 45 PSI to 12 GPM at 60 PSI
  • Deck mounted handles: available
  • ¾” valves available
  • Adaptable with any Compas Product line
  • See technical drawings



The Knurl collection embodies modern design and self contained elegance. The collection’s faucetry is a seamless, functional integration of the past and present.

Knurl Wall Mounted Handle reflects the core design principles of a transitional and timeless design language.

At Compas, we maintain an expert understanding of design history. To guarantee beauty and inspirational products, we integrate high standards in our fabrication processes. We make sure that our manufacturing methods do not impact our environment negatively.

The highest quality comes from having the highest standards. Compas meticulously chooses and sources the best materials to manufacture its products. To conceptualize tomorrow’s estates, we can work around the purest ingots to cast our fixtures or the rarest marbles.

To complement its collections Compas designs and manufactures artistically detailed European bath systems, faucets and accessories, all fitted with state-of-the-art high technology components that function seamlessly for contemporary living.

3/4" details

Knurl Wall Mounted Handle 3/4″ details



HALLMARKS & COMPONENTS
TECHNICAL INFORMATION
  • Wall-mounted ¾” valves-
  • Total height: 2 ½”
  • Width: Diameter 2 ¼”
  • Available in all finished. All finished are unlacquered.
  • Flow rate : unrestricted 9GPM at 45 PSI
  • Valves: ceramic disk (¾”)-no lead.
  • Made with low lead brass; includes possible ABS components
  • REF # for 3/4” valve: 12906735
  • Rough In-Depth: Minimum 234” – Maximum 518
  • Hole diameter: 1.1/8” ( 3 cm )
  • Water pressure maximum: 70 PSI (5 Bars)
  • Recommended pressure: 40 to 50PSI
  • maximum unrestricted flow: 12 gpm at 70 PSI
  • Connection: F ¾” NPT
  • Handle spread: N.A.
  • Metric threading available on request
  • Flow rate for outside the USA: inquire
  • Deck mounted handles: available
  • Adaptable with any Compas Product line
  • See technical drawings



Technical Specs

KNURL _ Wall mount handle .5 inch NPT _ 012906730 specifications sheet

KNURL _ Wall mount handle .75 inch NPT _ 012906735 specifications sheet

Additional Specs

Rough In Valves

ROUGH IN _ .5 INCH NPT _ 665202 specifications

ROUGH IN _ .75 INCH NPT _ 665302 specifications

Finishes

At Compas we offer a large selection finishes. All our finishes are live and patinate over time. We are environmentally conscious and all our finishes adhere to the highest, strict and controlled ecological standards.

Review all finishes available by clicking here.
