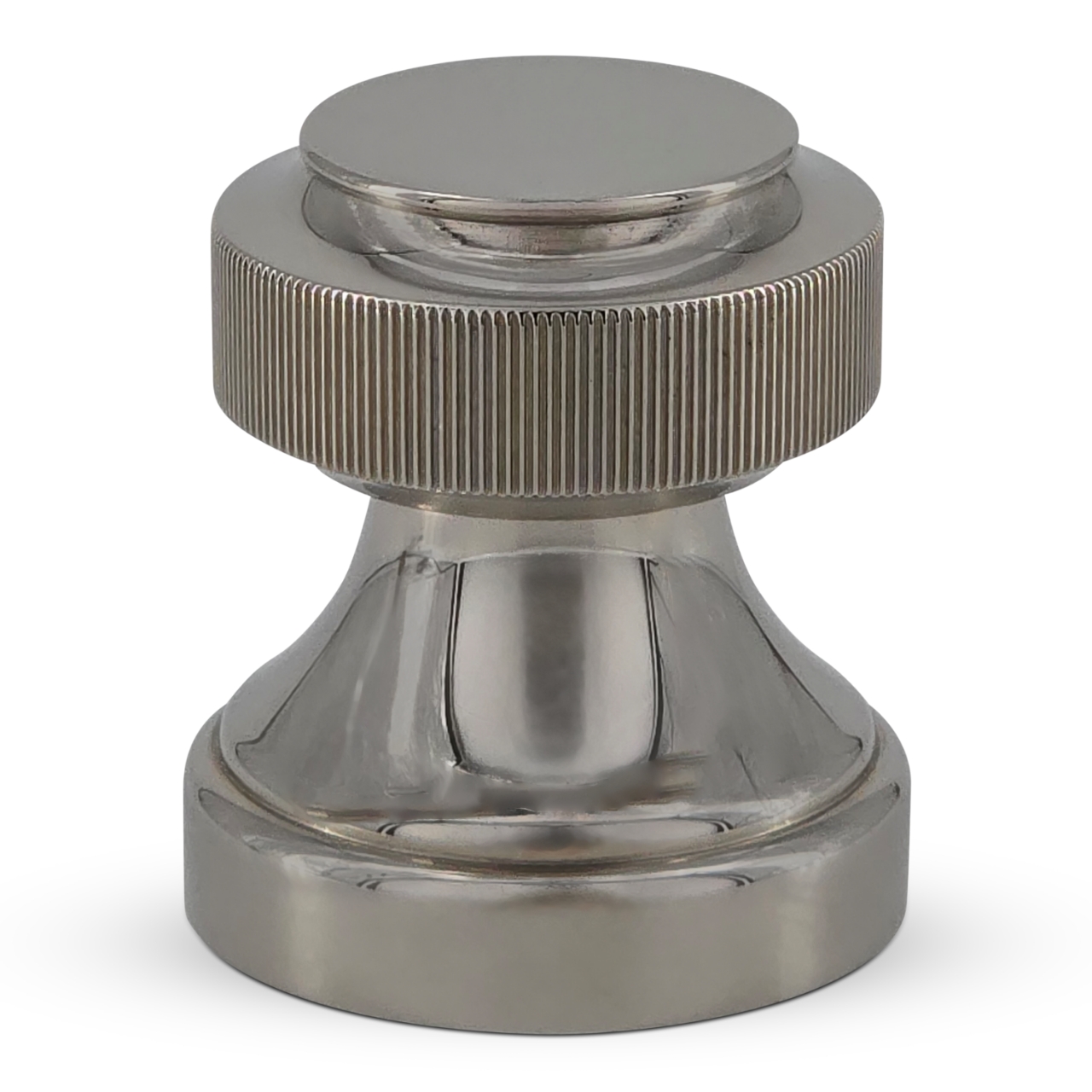

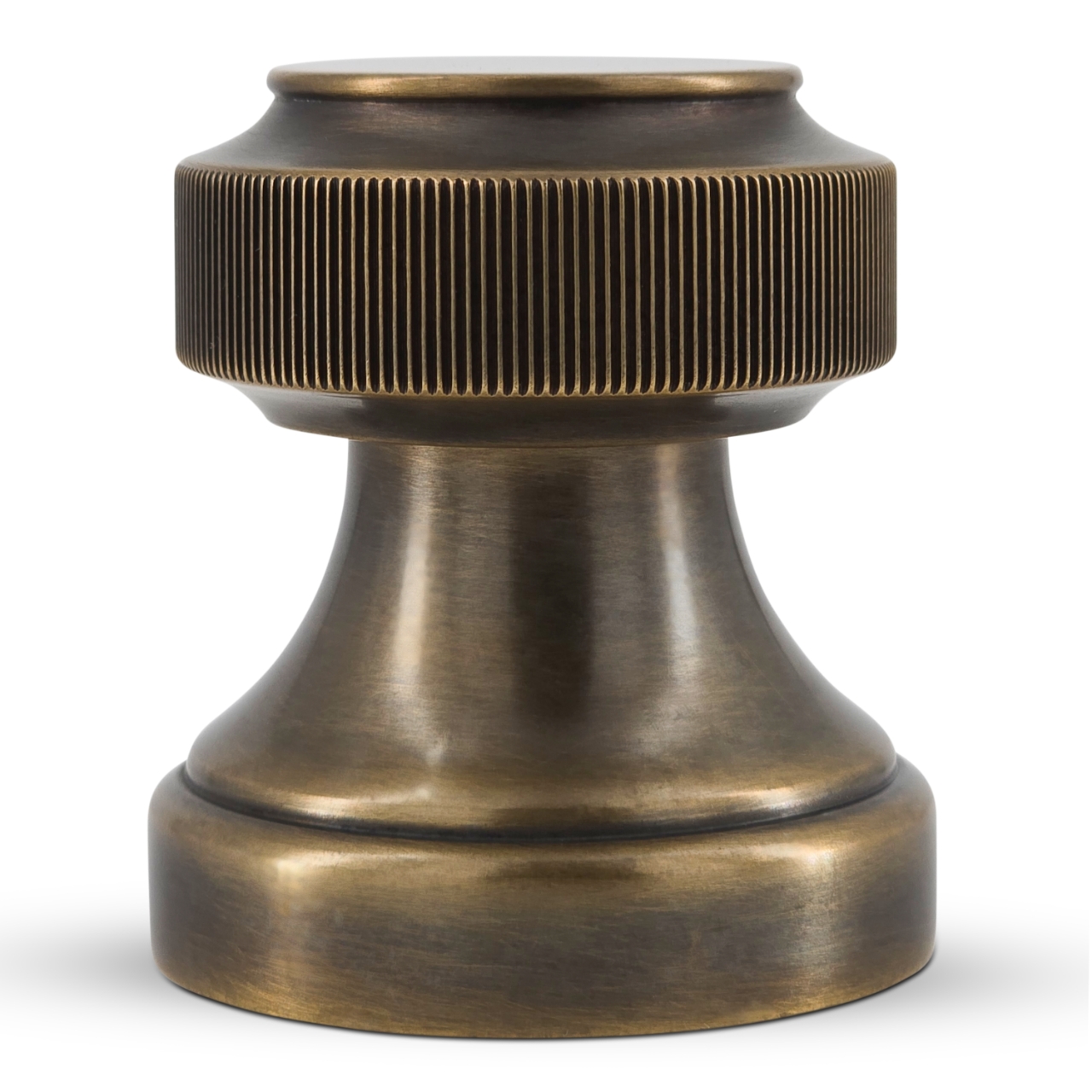

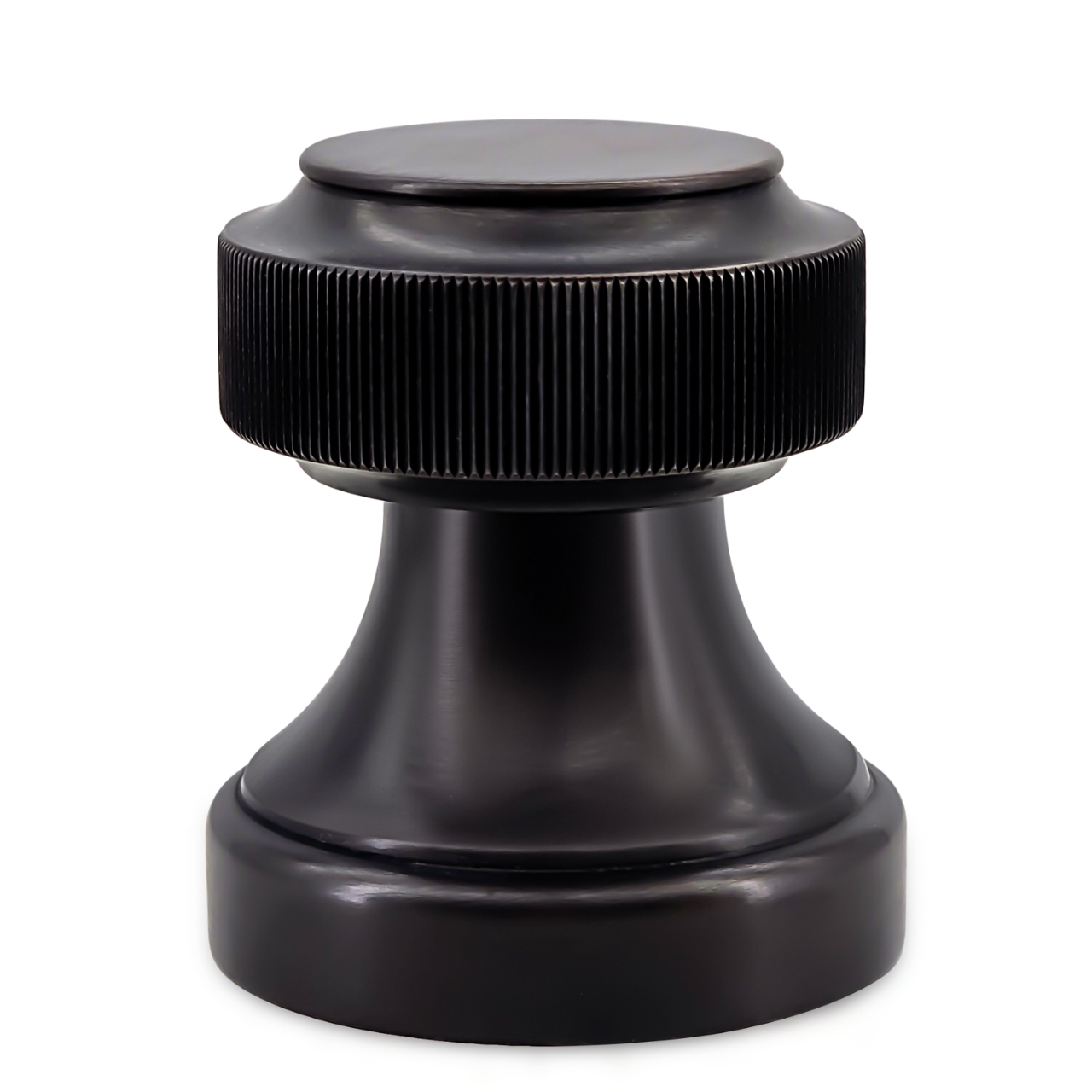

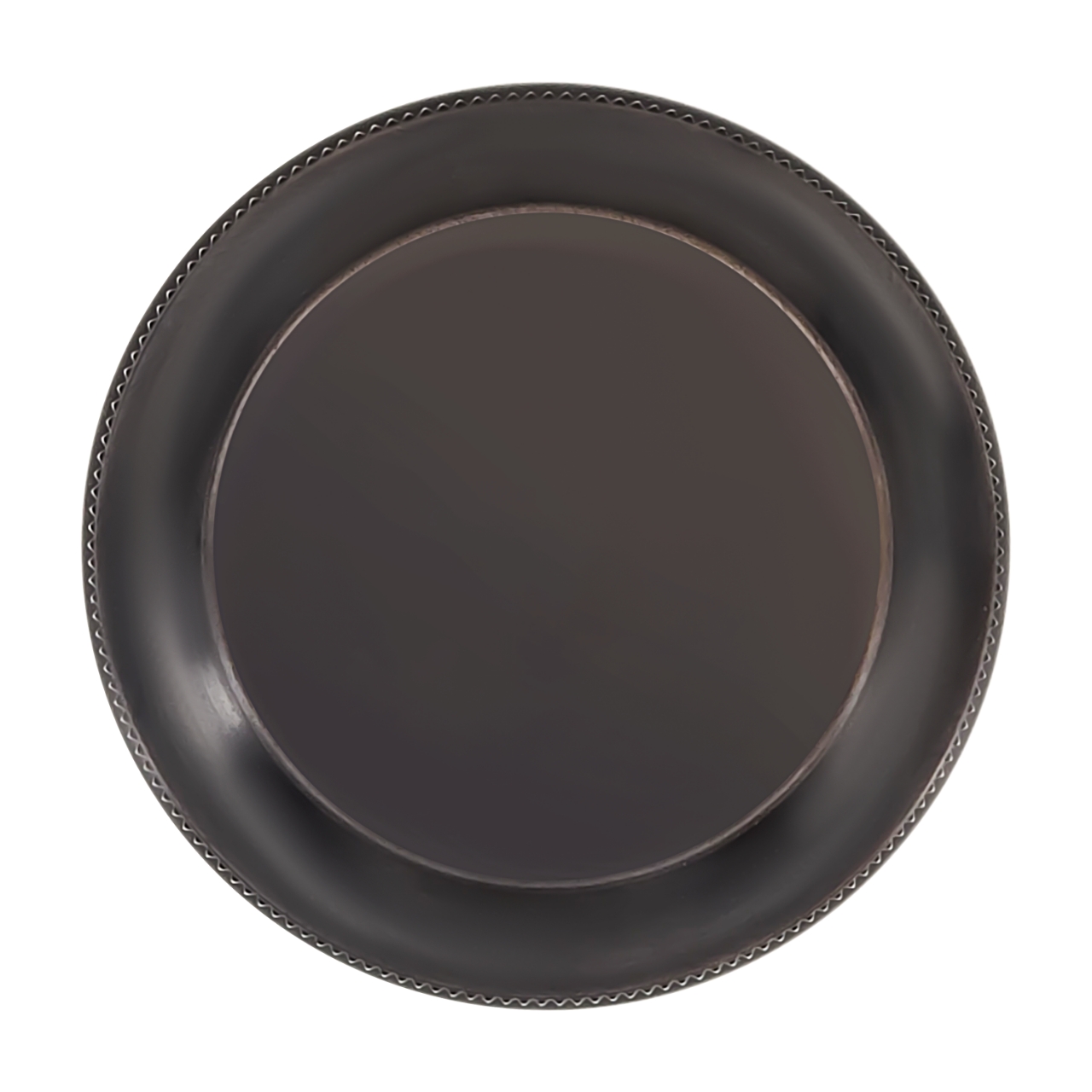

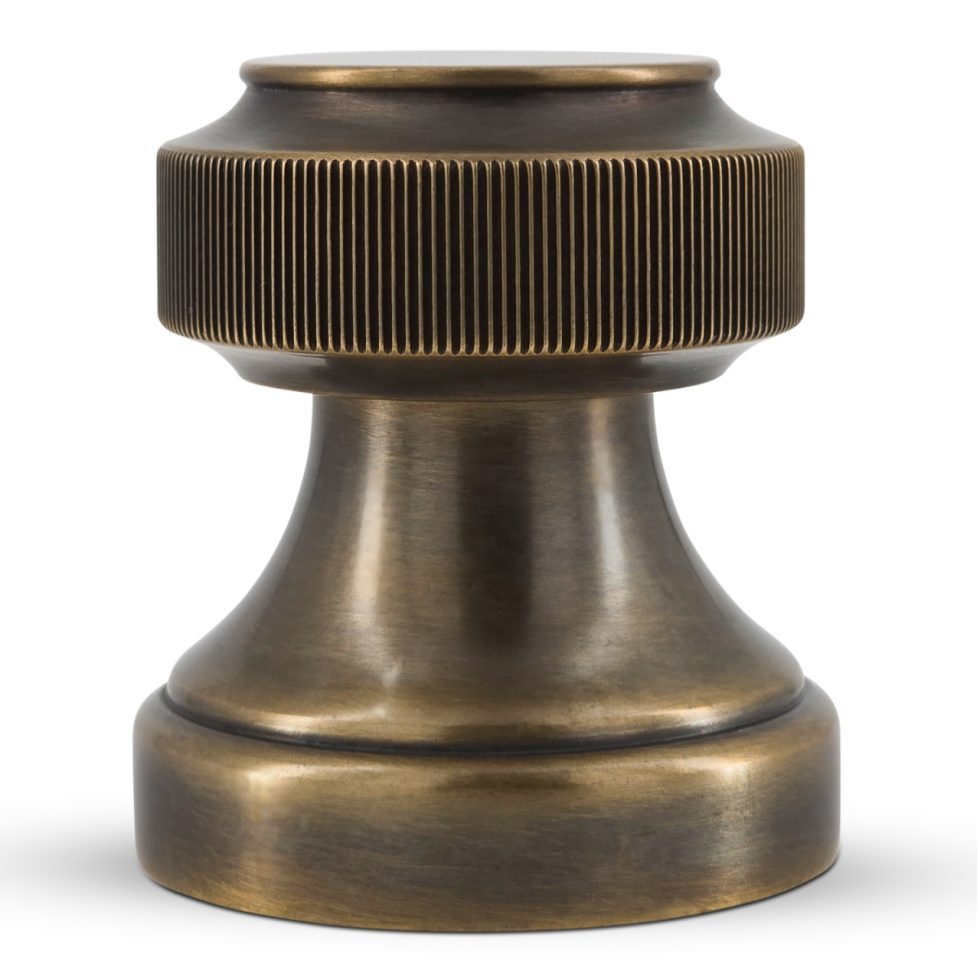

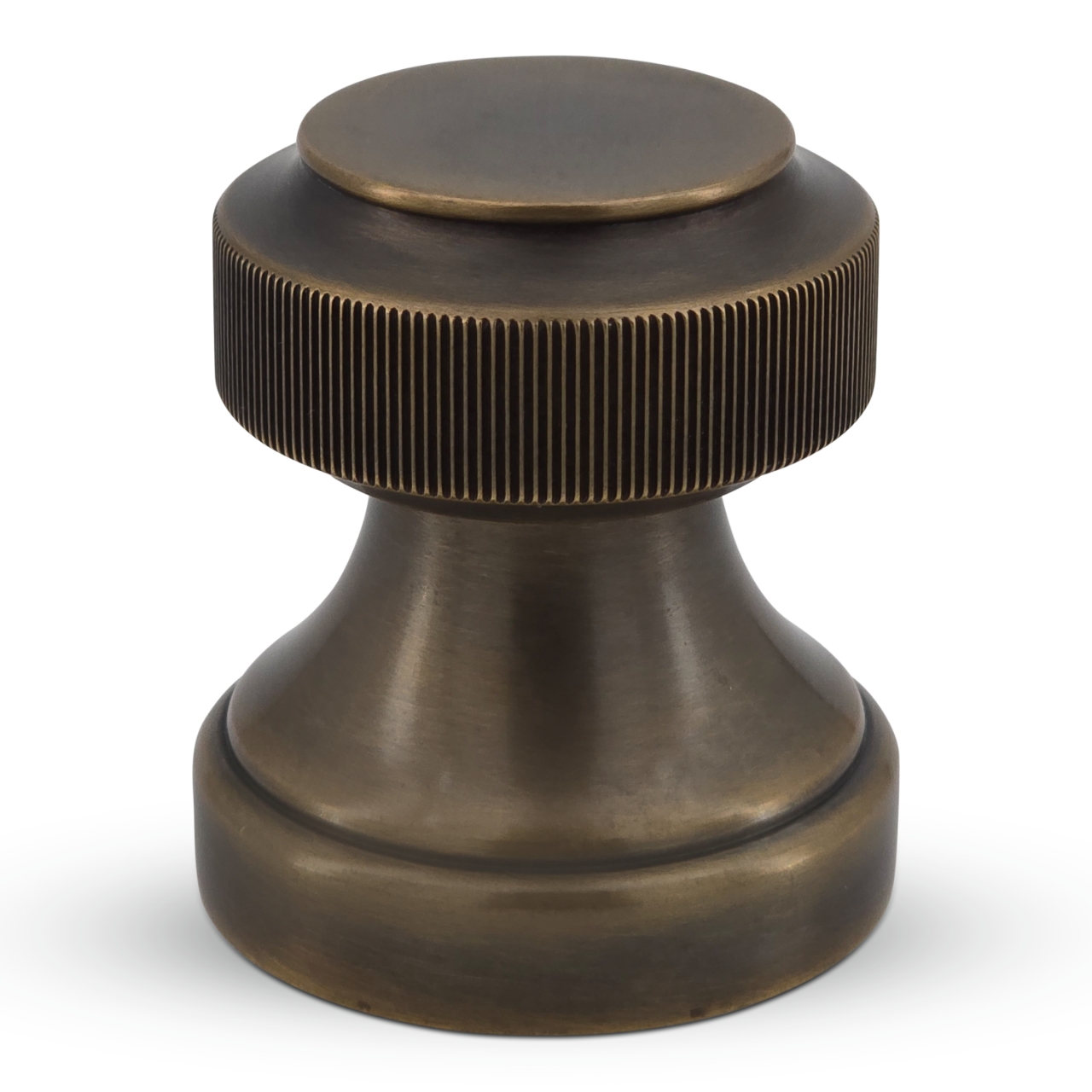

Knurl Deck Mounted Handle

A low profile pure silhouette defines this unit. Accentuated by its textured lines around its hedges for ease of use.

Timeless and with a pure silhouette, it complements classic or modern decors. The finely textured bracelet knob is inviting and seductive.

Available in 1/2″ NPT, 3/4″ NPT and diverter.

Description

Knurl Deck Mounted Handle 1/2″ details



HALLMARKS & COMPONENTS
TECHNICAL INFORMATION
  • Timeless and with a pure silhouette, it complements classic or modern decors
  • The finely textured bracelet knob is inviting and seductive.
  • Deck mounted ½” valve included
  • Handles turn ¼ to the right
  • Total height: 2 ½”
  • Width: diameter 21/4”
  • Available in all finishes. All finishes are live
  • Flow rate : 1.2 GPM ( 4,5L/min) at 60 PSI (4.1 Bar)
  • Valves: ceramic disk
  • Made with low lead brass; includes possible ABS components
  • Ref number: 6106720
  1. Deck maximum thickness: 2” (5 cm)
  2. Hole diameter: 1.1/8” (3 cm)
  3. Water pressure maximum: 75 PSI (5 Bars)
  4. Recommended pressure: 60PSI
  5. Connection: wire flex provided; ½” connector
  6. Handle spread: max. 11inches
  7. Metric threading available on request
  8. Flow rate for outside the  USA: inquire
  9. Wall mounted fitting available
  10. ¾” valves available
  11. Adaptable with any Compas  product line
  12. See technical drawings



The Knurl collection embodies modern design and self contained elegance. The collection’s faucetry is a seamless, functional integration of the past and present.

Knurl Deck Mounted Handle reflects the core design principles of a transitional and timeless design language.

At Compas, we maintain an expert understanding of design history. To guarantee beauty and inspirational products, we integrate high standards in our fabrication processes. We make sure that our manufacturing methods do not impact our environment negatively.

The highest quality comes from having the highest standards. Compas meticulously chooses and sources the best materials to manufacture its products. To conceptualize tomorrow’s estates, we can work around the purest ingots to cast our fixtures or the rarest marbles.

To complement its collections Compas designs and manufactures artistically detailed European bath systems, faucets and accessories, all fitted with state-of-the-art high technology components that function seamlessly for contemporary living.

3/4" details

Knurl Deck Mount Handle 3/4″ details

HALLMARKS & COMPONENTS
TECHNICAL INFORMATION
  • Deck mounted ¾” valve included
  • Handles turn ¼ to the left
  • Total height: 2 ½”
  • Width: diameter 21/4”
  • Available in all finishes. All finishes are live
  • Flow rate: 1.75 GPM at 60 PSI
  • Valves: ceramic disk
  • Made with low lead brass; includes possible ABS components
  • REF #: 1290SP6725
  1. Deck maximum thickness: 1 ¾””  (5 cm)
  2. Hole diameter: 1.1/8” (3 cm)
  3. Water pressure maximum: 75 PSI (5 Bars)
  4. Recommended pressure: 60PSI
  5. Connection: wire flex provided; ½” connector
  6. Handle spread: max. 11inches
  7. Metric threading available on request
  8. Flow rate for outside the  USA: inquire
  9. Wall-mounted fitting available
  10. ¾” valves available
  11. Adaptable with any Compas  product line
  12. See technical drawings

Technical Specs

Knurl – Deck mounted handle – .5 inch NPT _ 129SP6720 specifications sheet

Knurl – Deck mounted handle – .75 inch NPT 1290SP6725 2 specifications sheet

Knurl – Deck mounted rotary mixer G-.5 Inch _ 12906121 specifications sheet

Finishes

At Compas we offer a large selection finishes. All our finishes are live and patinate over time. We are environmentally conscious and all our finishes adhere to the highest, strict and controlled ecological standards.

Review all finishes available by clicking here.
