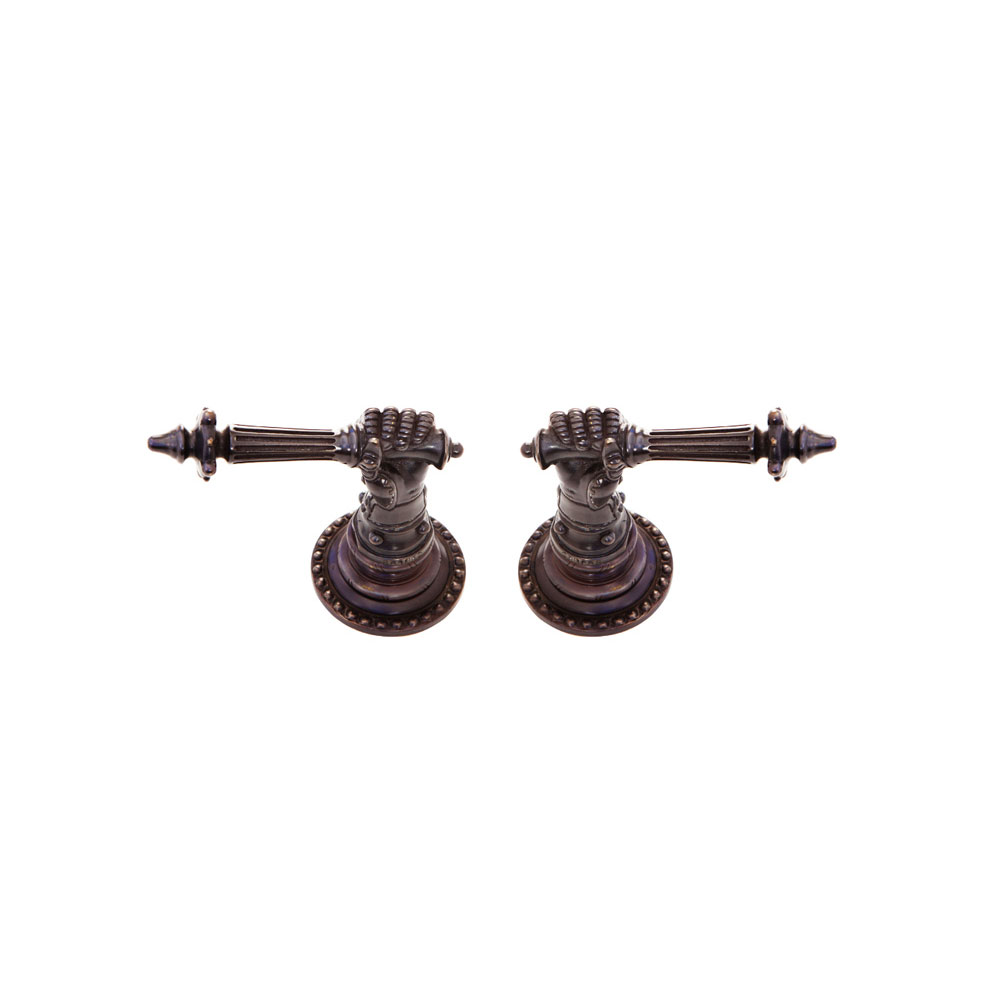

Gauntlet Deck Mounted Lever

Knighthood and Chevalerie inspired this whimsical thematic lever. Available in 1/2” NPT and 3/4” NPT for showers and tubs. Available in wall mounted or deck mounted variations.

Share

Description

Gauntlet Deck Mounted Lever 1/2″ Details



HALLMARKS & COMPONENTS
TECHNICAL INFORMATION
  • Deck mounted ½” valves
  • Lever turns ¼ forward  -Left and right levers are supplied
  • The valve is equipped with a security brake slowing its rotation.
  • Total height: 4”
  • Width of Lever: 5”
  • Available in all finished. All finished are unlacquered.
  • Flow rate : 1.2 GPM ( 4,5L/min) at 60 PSI (4.1 Bar)
  • Valves: ceramic disk.
  • Made with low lead brass; includes possible ABS components.
  • Ref #: Right lever:  09606730
  • Ref #: Left lever: 09606731
  1. Counter setting :134” maximum.
  2. Hole diameter: 1.1/8” ( 3 cm )
  3. Water pressure maximum: 75 PSI (5 Bars)
  4. Recommended pressure: 60PSI
  5. Connection: ½” F. NPT-
  6. Handle spread:  flex provided  11” max.
  7. Metric threading available on request
  8. Flow rate for outside the USA: inquire
  9. all valves are supplied
  10. See technical drawings

3/4" Details

Gauntlet Deck Mounted Lever 3/4″ Details



HALLMARKS & COMPONENTS
TECHNICAL INFORMATION
  • Deck-mounted ½” valves-(* Wall mount available in ¾” valve)
  • Lever turns ¼ to the right. -Left and right levers are supplied
  • The valve is equipped with a security brake slowing its rotation.
  • Total height: 4”
  • Width of Lever: 5”
  • Available in all finished. All finished are unlacquered.
  • Flow rate : 1.2 GPM ( 4,5L/min) at 60 PSI (4.1 Bar)
  • Valves: ceramic disk (½” or ¾”)
  • Made with low lead brass; includes possible ABS components.
  • Wall Mount ½” & ¾” valves setting available
  • Ref number for ½” valve: Right Handle:  09606730
  • Ref number for ½” valve: Left Handle: 09606731
  • Ref number for ¾” valve: Right Handle: 09606735
  • Ref number for ¾” valve: Left Handle: 09606736
  1. Counter setting :134” maximum.
  2. Hole diameter: 1.1/8” ( 3 cm )
  3. Water pressure maximum: 75 PSI (5 Bars)
  4. Recommended pressure: 60PSI
  5. Connection: ¾” NPT-
  6. Handle spread: N.A.
  7. fitted for tubs.
  8. Metric threading available on request
  9. Flow rate for outside the USA: inquire
  10. all valves are supplied
  11. See technical drawings

Technical Specs

Gauntlet – Deck moutned lever handle – .5 inch NPT 9606720 specifications sheet

Gauntlet – Deck moutned lever handle -.75 inch NPT 9606725 specifications sheet

Finishes

At Compas we offer a large selection finishes. All our finishes are live and patinate over time. We are environmentally conscious and all our finishes adhere to the highest, strict and controlled ecological standards.

Review all finishes available by clicking here.
