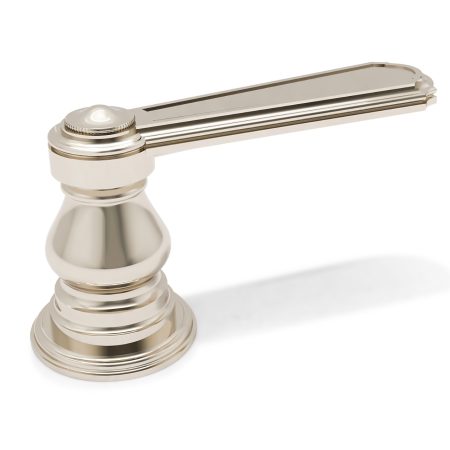

Rose Deck Mounted Handle

The stately, elongated, natural sloping curves of the Rose Handles give welcome intrude to any bath or spa and offer an ease of grip. With a subtle Florentine petal pattern across the base it gives just the right amount of structure.

Available in ½’’ and ¾’’ NPT for vanities, tubs and showers.

Share

Description

Rose Deck Mounted Handle 1/2″ Details



HALLMARKS AND COMPONENTS
TECHNICAL INFORMATION
  • Deck mounted ½” valve included
  • Handles turns ¼ to the right
  • Total height :4” 1/4
  • Width: 2.5”
  • Available in all finishes. All finishes are live
  • Flow rate : 1.2 GPM ( 4,5L/min) at 60 PSI (4.1 Bar)
  • Valves: ceramic disk
  • Made with low lead brass; includes possible ABS component
  • Ref number : 9706720
  1. Deck maximum thickness: 2”  ( 5 cm )
  2. Hole diameter: 1.1/8” ( 3 cm )
  3. Water pressure maximum: 75 PSI (5 Bars)
  4. Recommended pressure: 60 PSI
  5. Connection : ½” connector
  6. Handle spread: max. 11inches
  7. Metric threading available on request
  8. Flow rate for outside USA: inquire
  9. Wall mounted fitting available
  10. ¾” valves available
  11. See technical drawings

3/4" Details

Rose Deck Mounted Handle 3/4″ Details



HALLMARKS AND COMPONENTS
TECHNICAL INFORMATION
  • With a balustrade stem and a floral corolla ,it is gentle but determined.
  • Deck mounted ¾”” valve included
  • Handles turns ¼ to the right
  • Total height :4” 1/4
  • Width: 2.5”
  • Available in all finishes. All finishes are live
  • Unrestricted flow rate : up to 12 GPM
  • Valves: ceramic disk
  • Made with low lead brass; includes possible ABS components
  • Ref number : 09706725
  1. Deck maximum thickness: 2”  ( 5 cm )
  2. Hole diameter: 1.1/8” ( 3 cm )
  3. Water pressure maximum: 75 PSI (5 Bars)
  4. Recommended pressure: 60 PSI
  5. Connection : wire flex provided ; ¾” connector
  6. Handle spread: max. 11inches
  7. Metric threading available on request
  8. Flow rate to comply to local state regulation
  9. See technical drawings

Technical Specs

Rose – Deck mounted handle .5 inch NPT _ 09706720 specifications sheet

Rose – Deck mounted handle .75 inch NPT _ 09706725 specifications sheet

Finishes

At Compas we offer a large selection finishes. All our finishes are live and patinate over time. We are environmentally conscious and all our finishes adhere to the highest, strict and controlled ecological standards.

Review all finishes available by clicking here.
