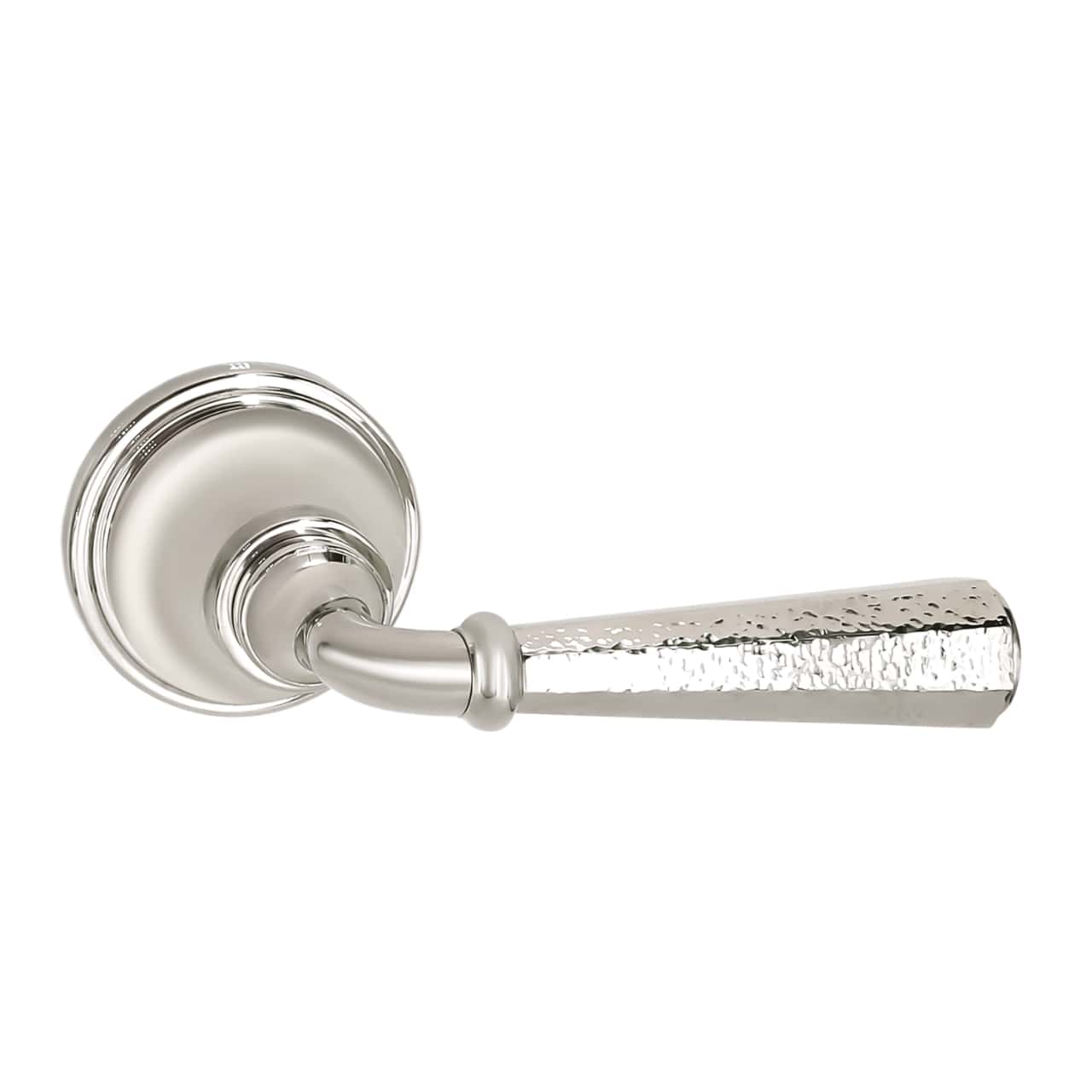

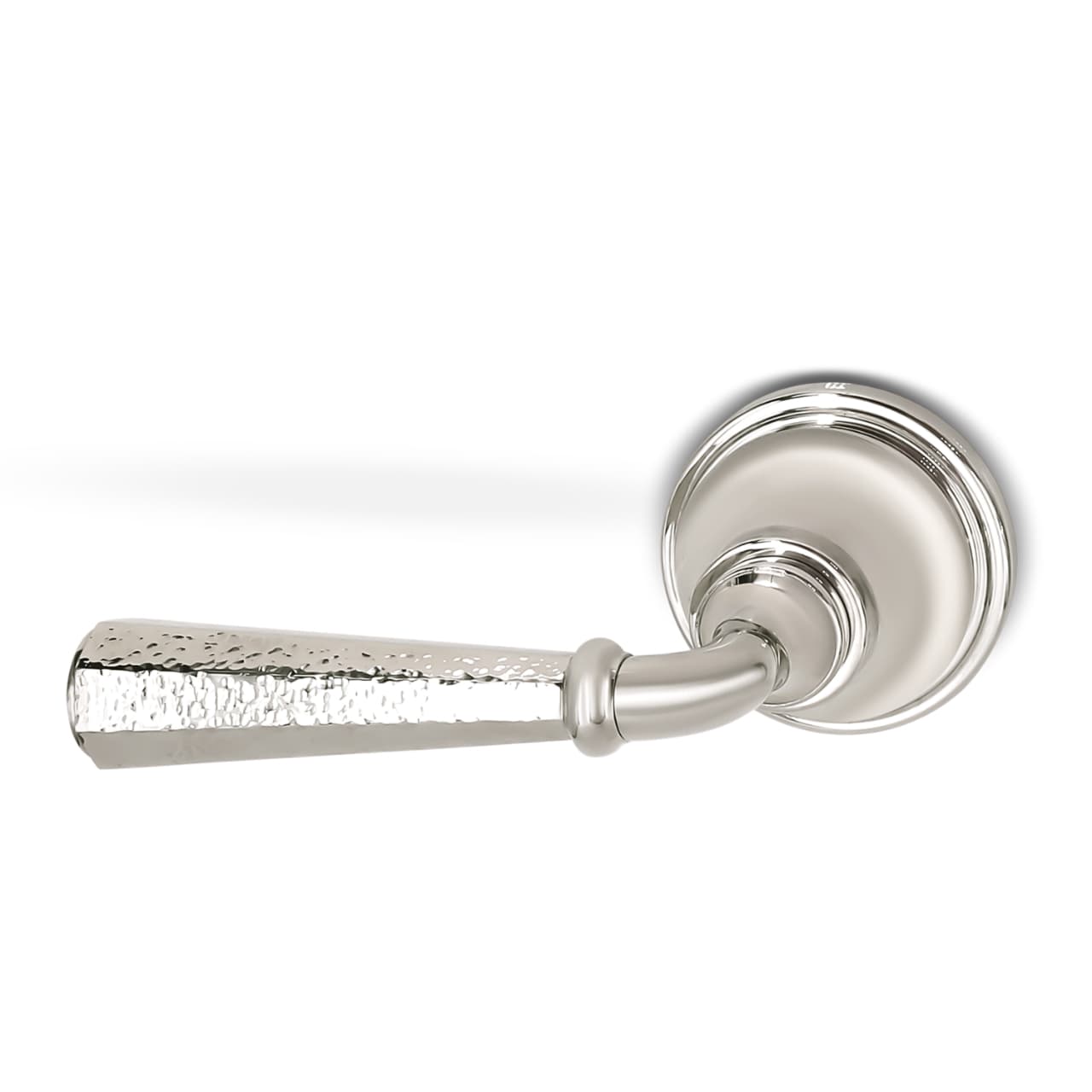

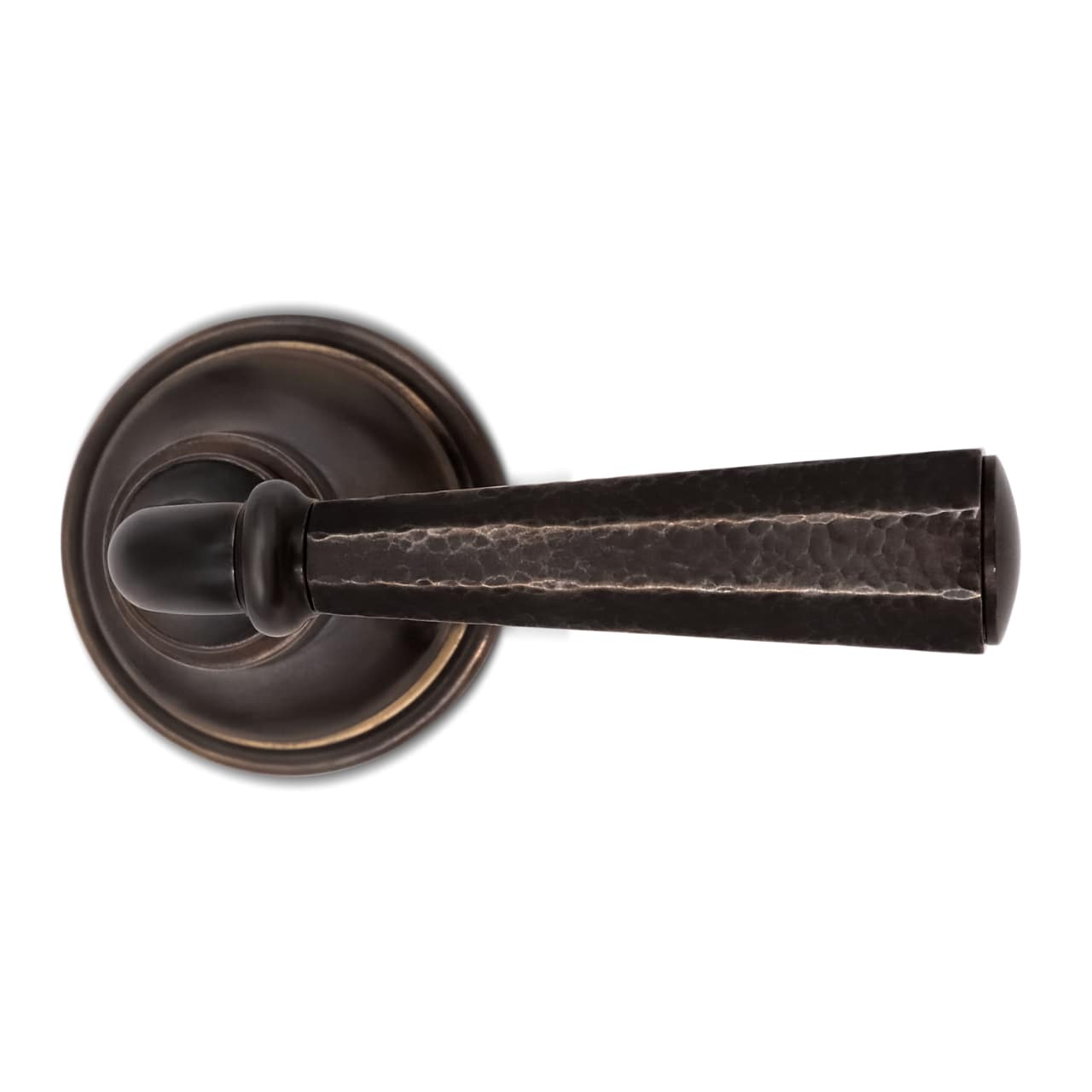

Montecito Wall Mounted Lever

A hand-hammered finish adds a touch of style to the Montecito lever, inspired by the turn of the century California style. With simple clean lines, the lever and the A-line skirt base complement one another’s design language, making for a classic fixture.

Available in ½’’ and ¾’’ NPT for vanities, tubs and showers.

Description

Montecito Wall Mounted Lever 1/2″ Details



HALLMARKS & COMPONENTS
TECHNICAL INFORMATION
  • Made and hammered by hand
  • Wall-mounted ½” valve included
  • The lever turns ¼  upward – Left and Right hand supplied.
  • Total width: 5.1/8”
  • Base: 2 ½” diameter
  • Projection: 3” 9/16
  • Available in all finishes. All finishes are unlacquered
  • Flow rate : 1.2 GPM  recommended ( California ) at 45 PSI
  • Valves: ceramic disk
  • Made with low lead brass; includes possible ABS components
  • Ref. # right lever: 017306730
  • Ref. # left lever: 017306711
  1. Rough-in depth: min 2.75” – max: 5”
  2. Water pressure maximum: 75 PSI (5 Bars)
  3. max flow 12 GPM at 75 PSI
  4. Recommended pressure: 45PSI
  5. California : 1.2GPM at 45 PSI
  6. Connection:  ½” NPT
  7. Metric threading available on request
  8. Flow rate for outside the USA: inquire
  9. all levers are fitted with rotation brakes
  10. See technical drawings



Montecito Wall Mounted Lever is a hand-hammered finish, inspired by the turn of the century California style.

With its exquisite details, hand-hammered finish, and strong design language, the Montecito harmoniously merges art and utility while paying respect to 1930s design principles.

At Compas, we maintain an expert understanding of design history. To guarantee beauty and inspirational products, we integrate high standards in our fabrication processes. We make sure that our manufacturing methods do not impact our environment negatively.

The highest quality comes from having the highest standards. Compas meticulously chooses and sources the best materials to manufacture its products. To conceptualize tomorrow’s estates, we can work around the purest ingots to cast our fixtures or the rarest marbles.

To complement its collections Compas designs and manufactures artistically detailed European bath systems, faucets and accessories, all fitted with state-of-the-art high technology components that function seamlessly for contemporary living.

3/4" Details

Montecito Wall Mounted Lever 3/4″ Details



HALLMARKS & COMPONENTS
TECHNICAL INFORMATION
  • Made and hammered by hand
  • Wall-mounted ¾” valve included
  • The lever turns ¼  upward
  • Left and Right hand supplied
  • Total width: 5.1/8”
  • Base: 2 ½” diameter
  • projection: 3” 9/16
  • Available in all finishes. All finishes are unlacquered
  • Flow rate: 1.8 GPM  recommended (California) at 45 PSI
  • Valves: ceramic disk
  • Made with low lead brass; includes possible ABS components
  • Ref. # right lever:  017306735
  • Ref. # left lever: 017306736
  1. Rough-in depth: min 2.75” – max: 5”
  2. Water pressure maximum: 75 PSI (5 Bars)
  3. max flow 12 GPM at 75 PSI
  4. Recommended pressure: 45PSI
  5. California : 1.8GPM at 45 PSI
  6. Connection:  ¾” NPT
  7. Metric threading available on request
  8. Flow rate for outside the USA: inquire
  9. all levers are fitted with rotation brakes
  10. See technical drawings

Technical Specs

Montecito-Wall-mounted-lever-handle-.5-inch-NPT-_-17303730 specifications sheet

Montecito-Wall-mounted-lever-handle-.75-inch-NPT-_-17306735 specifications sheet

Additional Specs

Rough In Valves

ROUGH IN _ .5 INCH NPT _ 665202 specifications

ROUGH IN _ .75 INCH NPT _ 665302 specifications



Levers direction of operation

Wall Mounted Lever – 0.5 Inch Valve specifications

Wall Mounted Lever – 0.75 Inch Valve specifications

Finishes

At Compas we offer a large selection finishes. All our finishes are live and patinate over time. We are environmentally conscious and all our finishes adhere to the highest, strict and controlled ecological standards.

Review all finishes available by clicking here.
