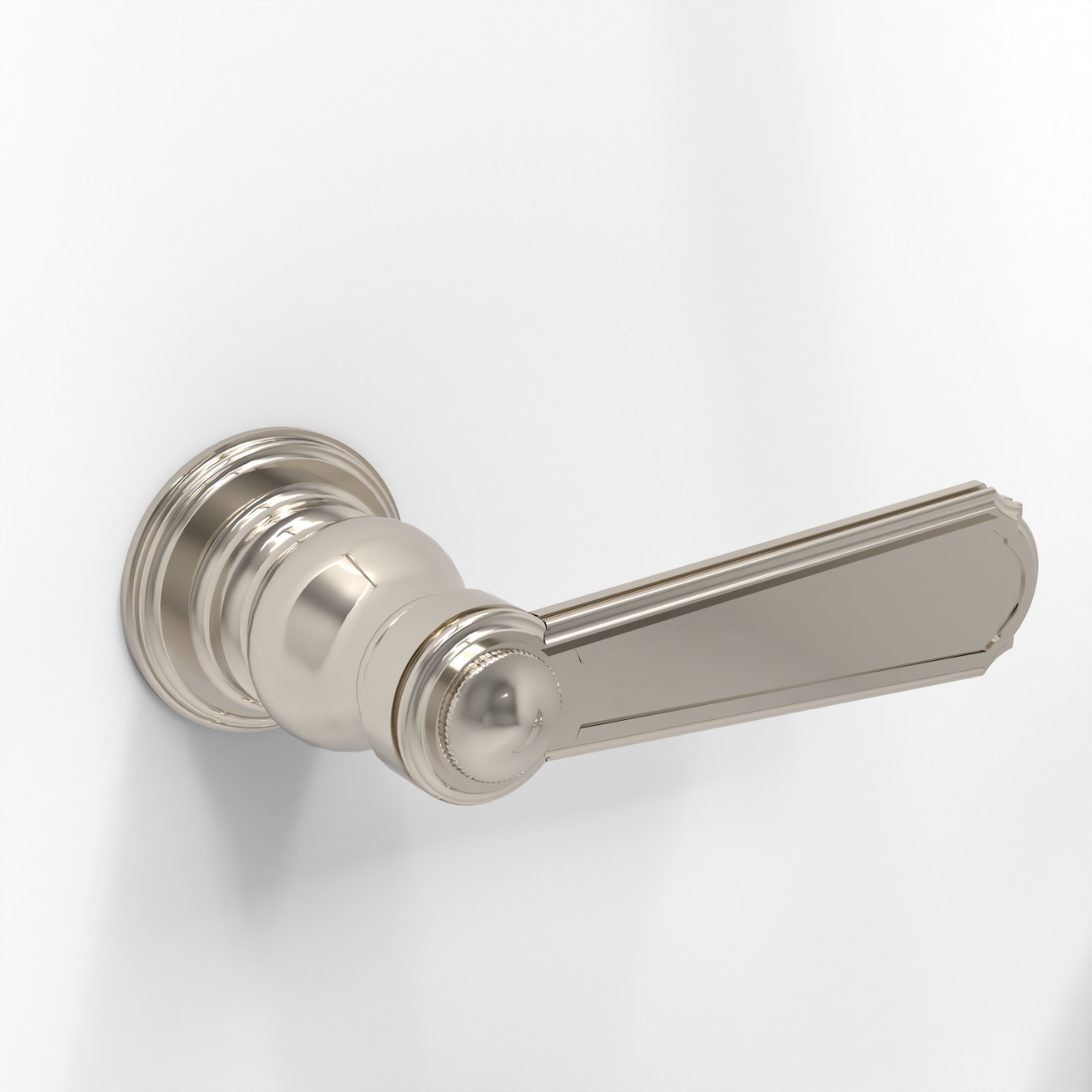

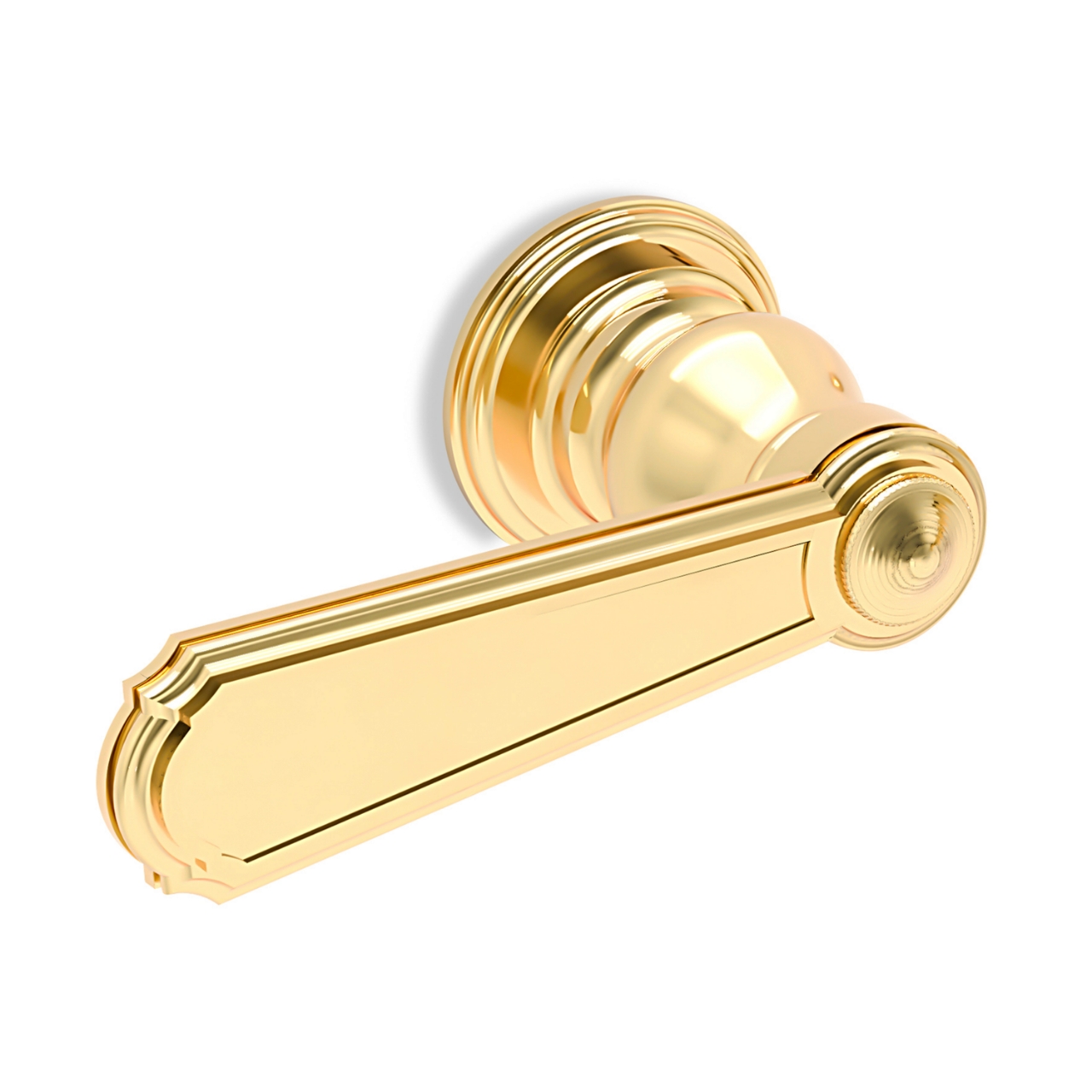

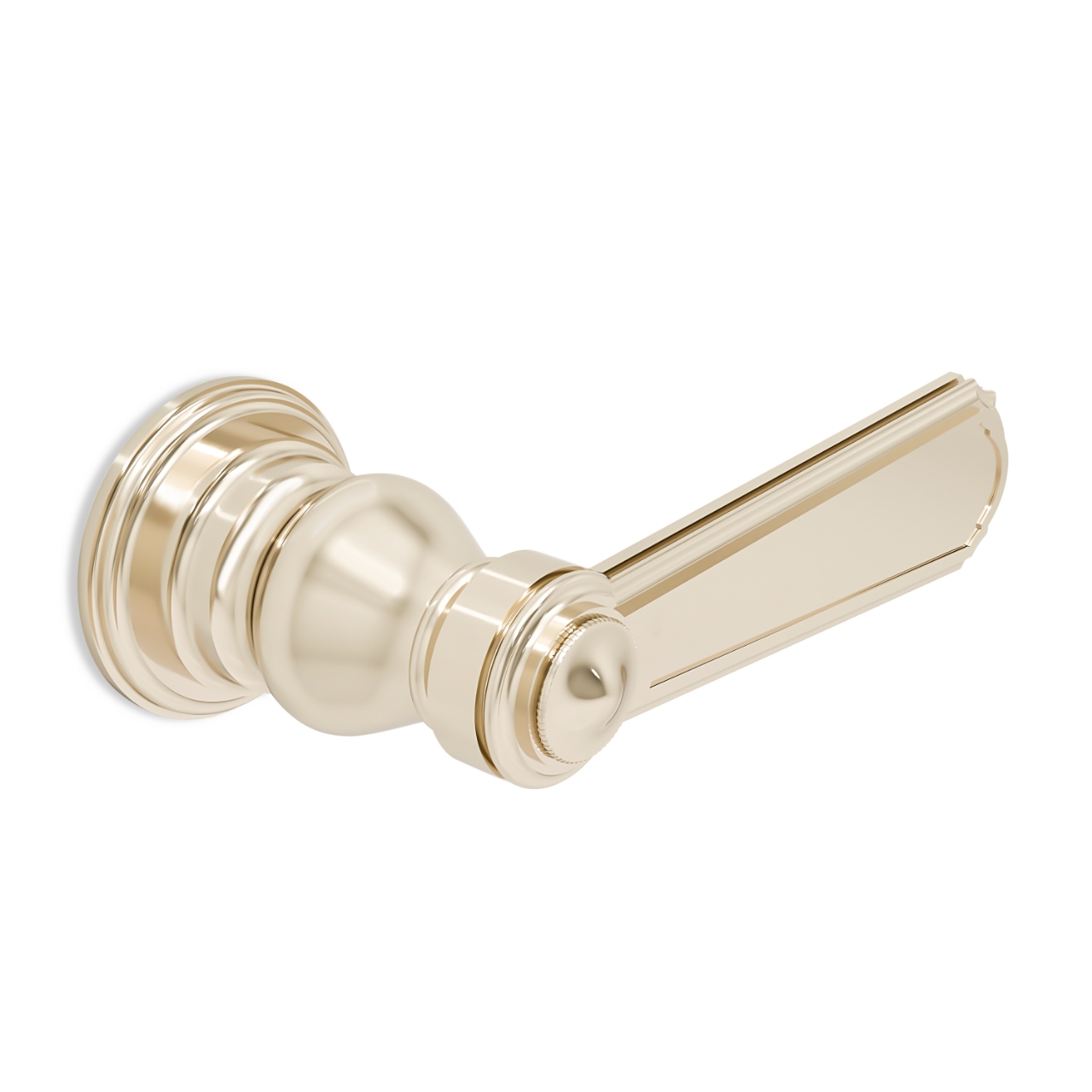

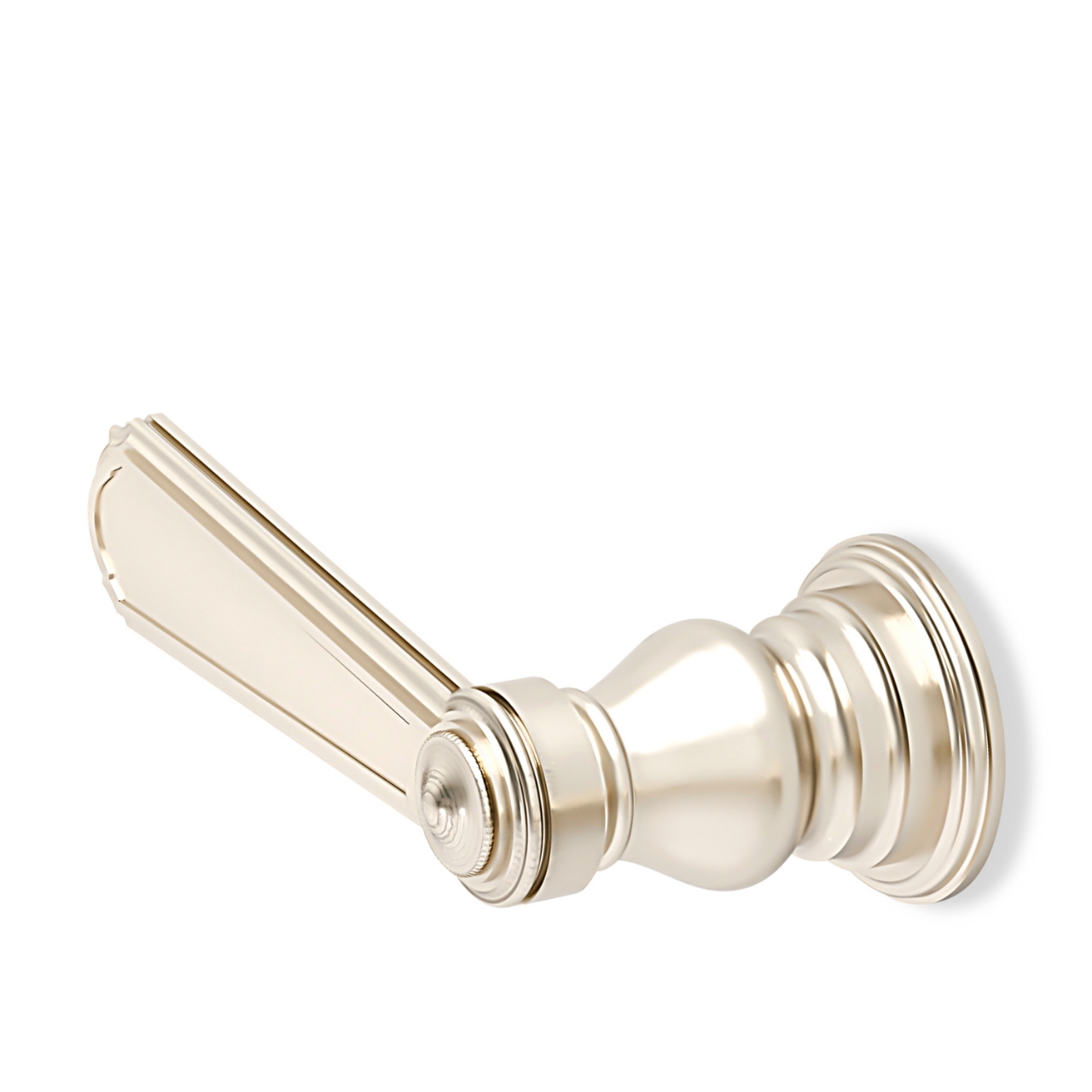

Villa Wall Mounted Lever

The Villa’s baluster contoured silhouette is inspired by historic Mediterranean gardens and patterns. A gentle elegance that transcends any contemporary quandaries into serene tranquil fortitude.

Available in ½” and ¾” NPT for vanities, tubs and showers.

Share

Description

Villa Wall Mounted Lever 1/2″ Details



HALLMARKS & COMPONENTS
TECHNICAL INFORMATION
  • Wall mounted lever with ½” valves-
  • Lever turns ¼ up – left and right handle supplied
  • rotation brake: included in the valve
  • Total height: 4-1/8” Long
  •  Available in all finishes. All finishes are live.
  • Restricted Flow rate : 1.2 GPM ( 4,5L/min) at 60 PSI (4.1 Bar)
  • Valves: ceramic disk
  • Available with shield on skirt on request
  • Made with low lead brass; includes possible ABS components.
  • Ref # Right Hand: 09506730
  • Ref # Left Hand: 09506731
  1. Rough In Depth: Minimum 234” – Maximum 518
  2. Hole diameter: 1.1/8” ( 3 cm )
  3. Water pressure maximum: 75 PSI (5 Bars)
  4. Recommended pressure: 60PSI
  5. Connection : ½” NPT
  6. Handle spread: open
  7. Metric threading available on request
  8. Flow rate for outside the USA: inquire
  9. Deck mounted handles: available
  10. See technical drawings

3/4" Details

Villa Wall Mounted Lever 3/4″ Details



HALLMARKS & COMPONENTS
TECHNICAL INFORMATION
  • Wall mounted lever ¾” valves
  • Handle Lever turns up – left and right handle supplied.
  • Total height: 2 ½”
  • Width: Handle: 4-1/8” Long
  • Available in all finishes. All finishes are live.
  • Restricted Flow rate : 1.75 GPM at 60 PSI (4.1 Bar)
  • Valves: ceramic disk
  • Available with shield on skirt on request
  • Made with low lead brass; includes possible ABS components.
  • Ref #  ¾” valve : Right Hand: 09506735
  • Ref #  ¾” valve : Left Hand: 09506736
  1. Rough In Depth: Minimum 234” – Maximum 518
  2. Hole diameter: 1.1/8” ( 3 cm )
  3. Water pressure maximum: 75 PSI (5 Bars)
  4. Recommended pressure: 60PSI
  5. Connection : ¾” F. NPT
  6. Handle spread: open
  7. Metric threading available on request
  8. Flow rate for outside USA: inquire
  9. See technical drawings

Technical Specs

Villa – Wall mounted lever handle .5 inch NPT _ 09506730 specifications sheet

Villa – Wall mounted lever handle .75 inch NPT _ 09506735 specifications sheet

Finishes

At Compas we offer a large selection finishes. All our finishes are live and patinate over time. We are environmentally conscious and all our finishes adhere to the highest, strict and controlled ecological standards.

Review all finishes available by clicking here.
