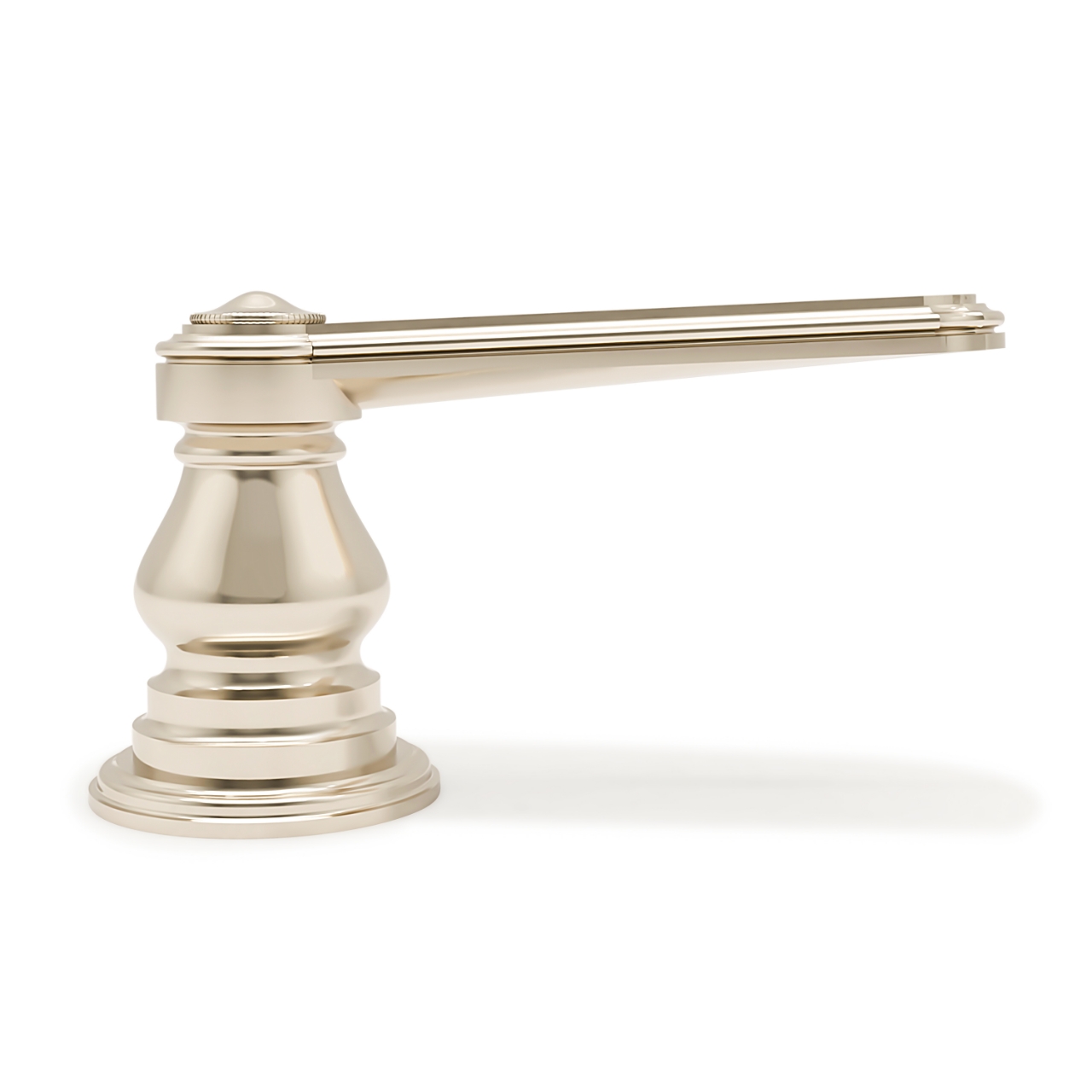

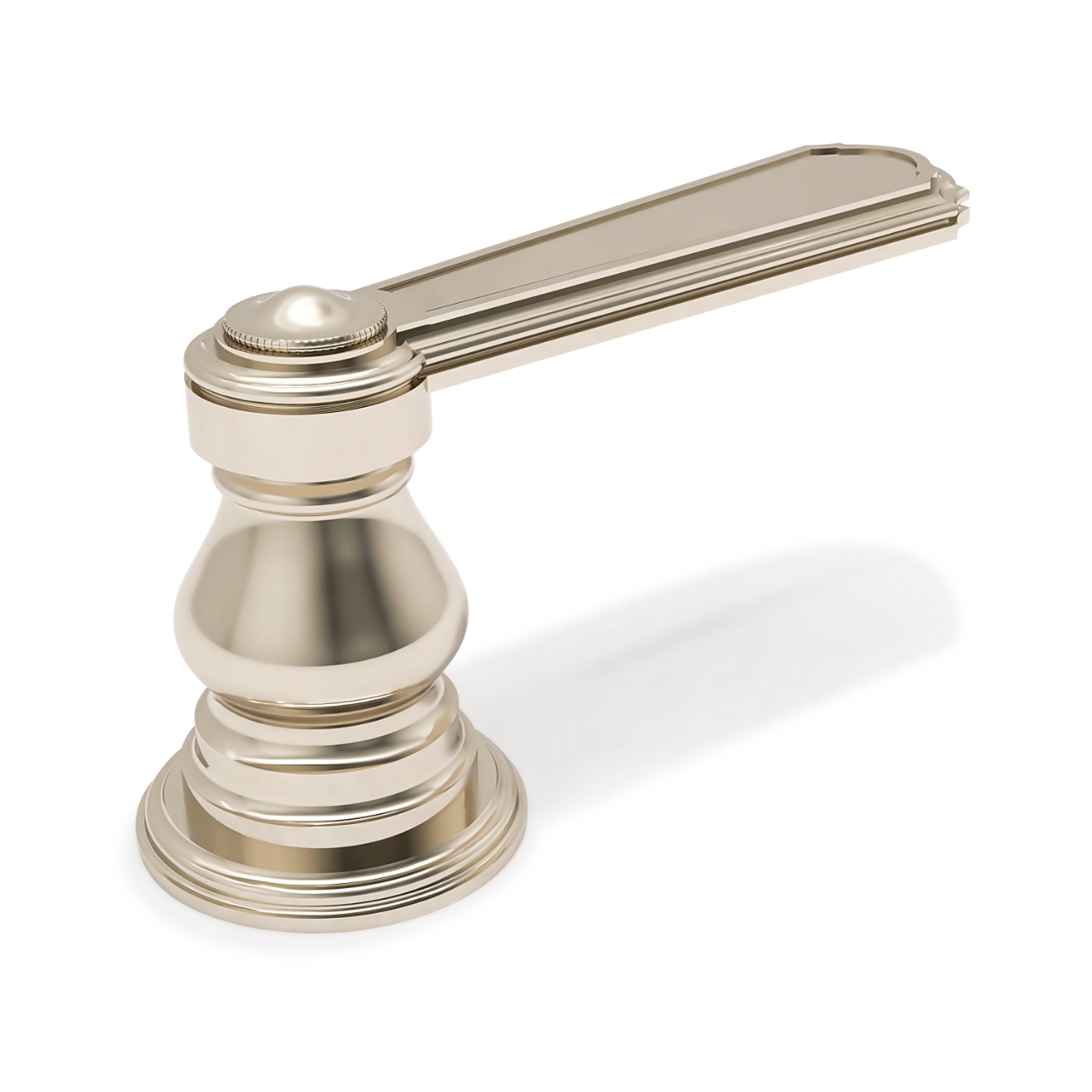

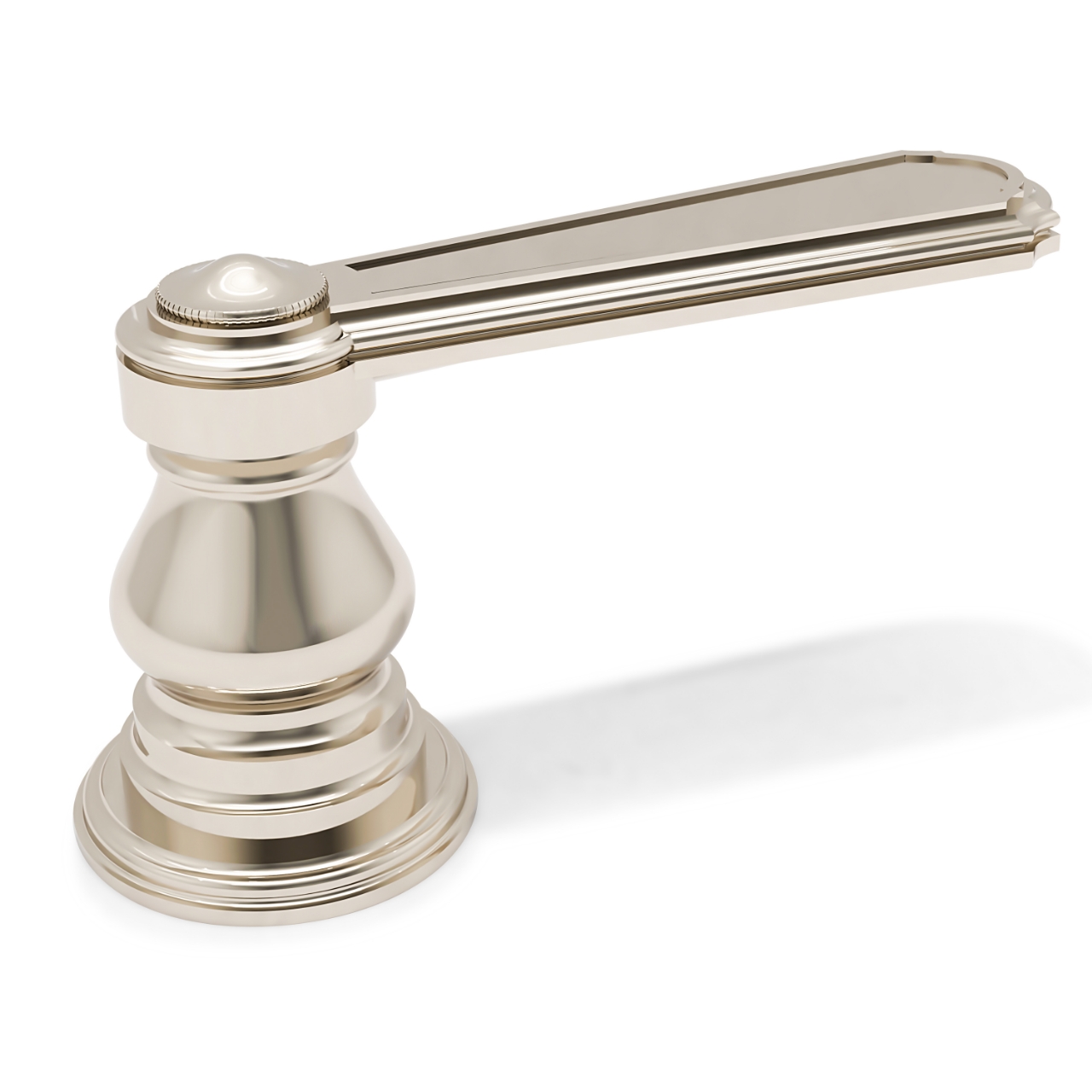

Villa Deck Mounted Lever

The Villa’s baluster contoured silhouette is inspired by historic Mediterranean gardens and patterns. A gentle elegance that transcends any contemporary quandaries into serene tranquil fortitude.

Available in ½” and ¾” NPT for vanities, tubs and showers.

REQUEST INFORMATION

Villa Deck Mount Handle Left Right Collection
Villa Deck Mount Handle Collection
Villa Deck Mount Handle Collection
Villa Deck Mount Handle Collection
Villa Deck Mount Handle Collection
Villa Deck Mount Handle Collection

Share

Description

Villa Deck Mounted Lever 1/2″ Details



HALLMARKS & COMPONENTS
TECHNICAL INFORMATION
  • Deck mounted lever with ½” valve included
  • Handles turn ¼ forward
  • Total height : 3”
  • Width: lever is 41/8” long
  • Available in all finishes. All finishes are live
  • Flow rate : 1.2 GPM ( 4,5L/min) at 60 PSI (4.1 Bar)
  • Valves: ceramic disk ½” for vanity
  • Available with a” shield “ on request
  • Made with low lead brass; includes possible ABS components.
  • Ref #  Right hand: 9506720
  • Ref #  Left hand:  9506721
  1. Deck maximum thickness: 1.75”
  2. Hole diameter: 1.1/8” ( 3 cm )
  3. Water pressure maximum: 75 PSI (5 Bars)
  4. Recommended pressure: 60PSI
  5. Connection : wire flex provided ; ½” F. connector
  6. Handle spread: max. 11inches
  7. Metric threading available on request
  8. Flow rate for outside the USA: inquire
  9. See technical drawings

3/4" Details

Villa Deck Mounted Lever 3/4″ Details



HALLMARKS & COMPONENTS
TECHNICAL INFORMATION
  • Deck mounted lever with a ¾” valve.
  • Handles turn ¼ forward
  • Total height : 3”
  • Width: lever is  4. ¼”  long
  • Available in all finishes. All finishes are unlacquered
  • Valves: ceramic disk ¾”  for tubs
  • Available with a “shield”  on request
  • Made with low lead brass; includes possible ABS components.
  • Ref # Right hand: 9506725
  • Ref # Left hand:  9506726
  1. Deck maximum thickness: 1.75”
  2. Hole diameter: 1.1/8” ( 3 cm )
  3. Water pressure maximum: 75 PSI (5 Bars)
  4. Recommended pressure: 60PSI
  5. Flow: up to 2.2 GPM
  6. Connection: ¾” F NPT
  7. Handle spread: N.A.
  8. Metric threading available on request
  9. Flow rate for outside the USA: inquire
  10. See technical drawings

Rotary Mixer Details

Villa Deck Mounted Lever Rotary Mixer Details



HALLMARKS & COMPONENTS
TECHNICAL INFORMATION
  • Deck mounted rotary mixer with ½” valve
  • Lever mixes water from cold to hot
  • to be used with a 1/2” handheld or spout
  • Total height : 3”
  • Width: lever is 41/8” long
  • Available in all finishes. All finishes are unlacquered.
  • Flow rate: unobstructed 3.6 to 4.2 GPM
  • Made with low lead brass; includes possible ABS components.
  • Ref #  : 9506121
  1. Deck maximum thickness: 1.5”
  2. Hole diameter: 1.1/8” ( 3 cm )
  3. Water pressure maximum: 75 PSI (5 Bars)
  4. Recommended pressure: 45PSI
  5. Inflow: G ½”
  6. Connection :  flex provided ; ½”  connector
  7. Metric threading available on request
  8. Flow restriction applies to California resident
  9. See technical drawings



Technical Specs

Villa – Deck mounted lever handle .5 inch NPT _ 09506720 specifications sheet

Villa – Deck mounted lever handle .75 inch NPT _ 09506725 specifications sheet

Villa – Deck mounted rotary mixer .5 Inch -G- _ 09506121 specifications sheet

Finishes

At Compas we offer a large selection finishes. All our finishes are live and patinate over time. We are environmentally conscious and all our finishes adhere to the highest, strict and controlled ecological standards.

Review all finishes available by clicking here.
