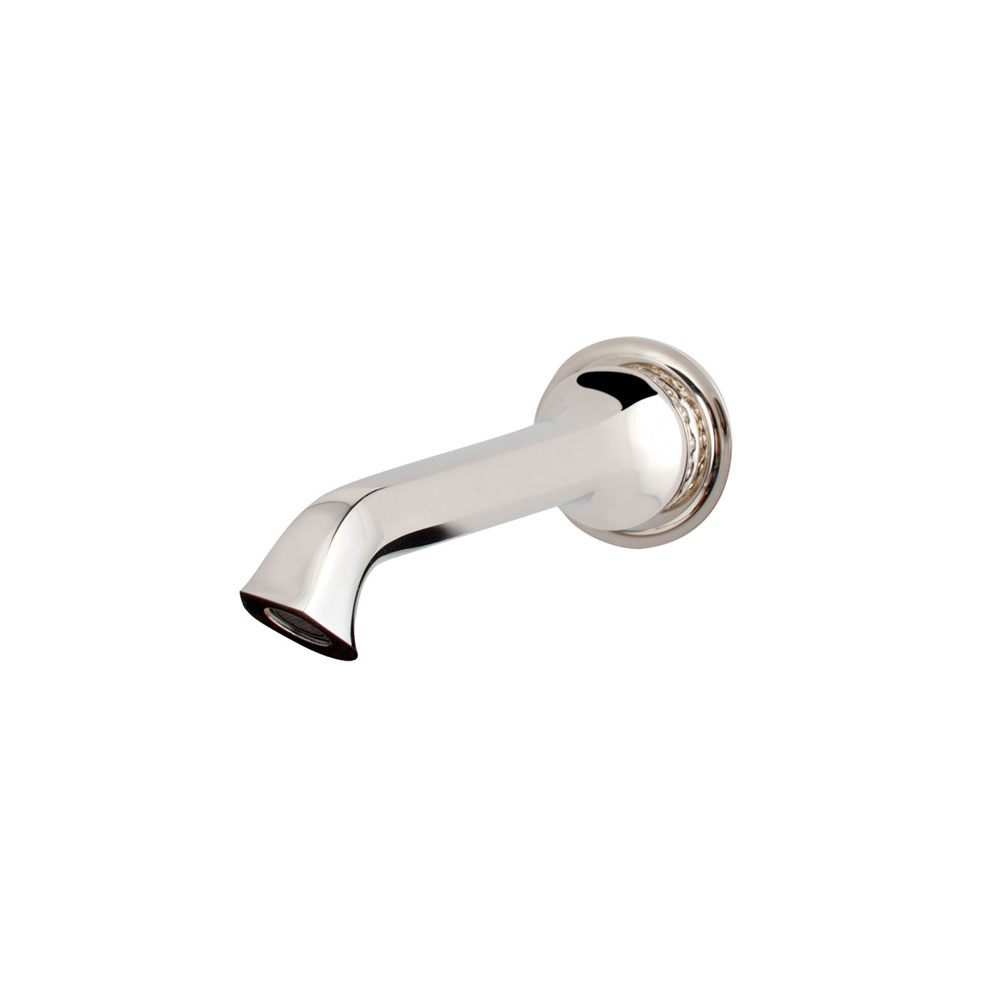

Tudor Wall Mounted Spout

Taking inspiration from the English Tudor rose, this design is feminine but bold and soft yet powerful.

Available in ½” and ¾” NPT for vanities or tubs.

Share

Description

Tudor Wall Mounted Spout 1/2″ Details



HALLMARKS & COMPONENTS
TECHNICAL INFORMATION
  • Wall-mounted 1/2” spout
  • Restricted flow: 1.2 GPM
  • Requires Two Handles Wall Mounted ¾” Valve
  • Total projection: 9-1/8”
  • Width / diameter base: 3-5/8”
  • Available in all finishes. All finishes are unlacquered.
  • Made with low lead brass; may includes ABS components.
  • Ref number for ½”:  8906102
  1. In/Flow Connection: Female ½” NPT
  2. Minimum Recommended Pressure: 20 PSI
  3. Recommended Pressure: 50 PSI
  4. Concealed Aerator included
  5. Metric Threading available upon request
  6. Flow rate for outside the USA: inquire
  7. Refer to technical drawings
  8. Weighted Average Lead content complies with 0.25%

3/4" Details

Tudor Wall Mounted Spout 3/4″ Details



HALLMARKS & COMPONENTS
TECHNICAL INFORMATION
  • Wall-mounted 3/4” spout for tubs
  • Restricted flow: 1.8 to 2.2 GPM
  • Requires Two Handles Wall Mounted ¾” Valve
  • Total projection: 9-1/8”
  • Width / diameter base: 3-5/8”
  • Available in all finishes. All finishes are unlacquered.
  • Made with low lead brass; may include ABS components.
  • Ref #:  08906270
  1. In/Flow Connection: Female ¾” NPT
  2. Minimum Recommended Pressure: 20 PSI
  3. Recommended Pressure: 50 PSI
  4. Concealed Aerator included
  5. Metric Threading available upon request
  6. Flow rate for outside the USA: inquire
  7. Refer to technical drawings
  8. Weighted Average Lead content complies with 0.25%

Technical Specs

Tudor – Wall mounted spout .5 inch NPT _ 08906102 specifications sheet

Tudor – Wall mounted spout .75 inch NPT _ 08906270 specifications sheet

Finishes

At Compas we offer a large selection finishes. All our finishes are live and patinate over time. We are environmentally conscious and all our finishes adhere to the highest, strict and controlled ecological standards.

Review all finishes available by clicking here.
