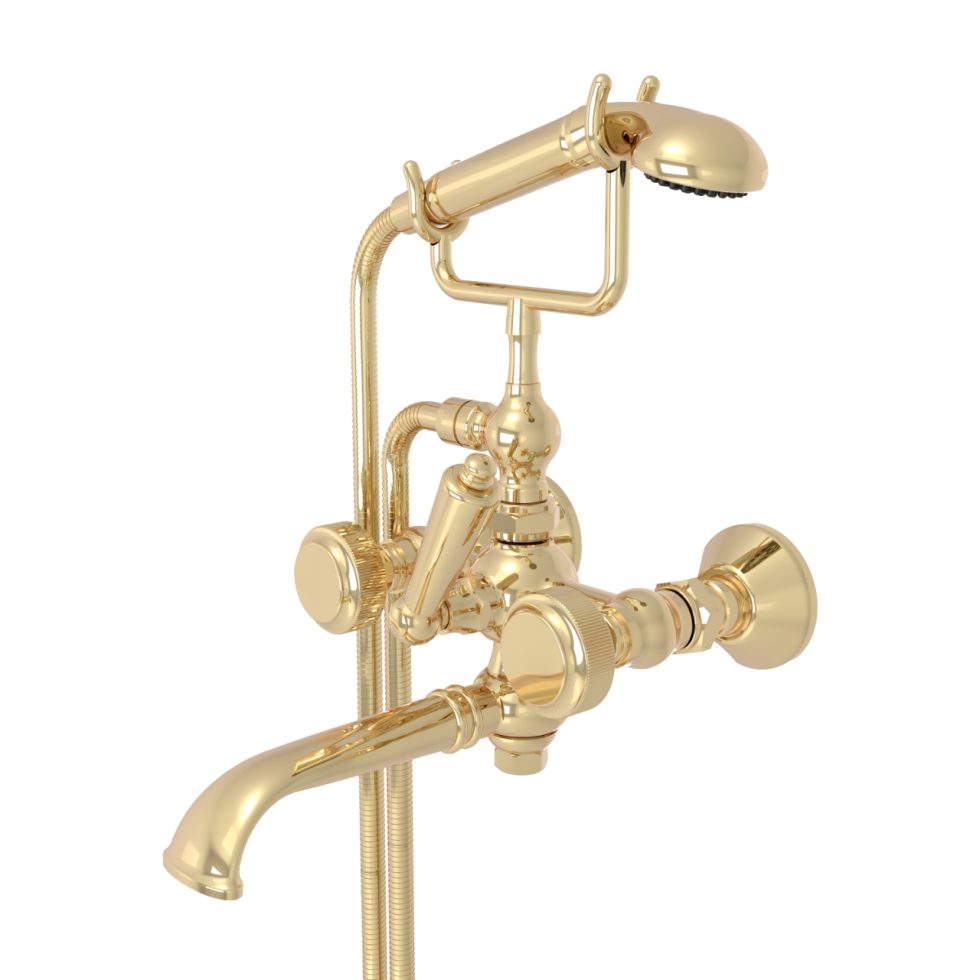

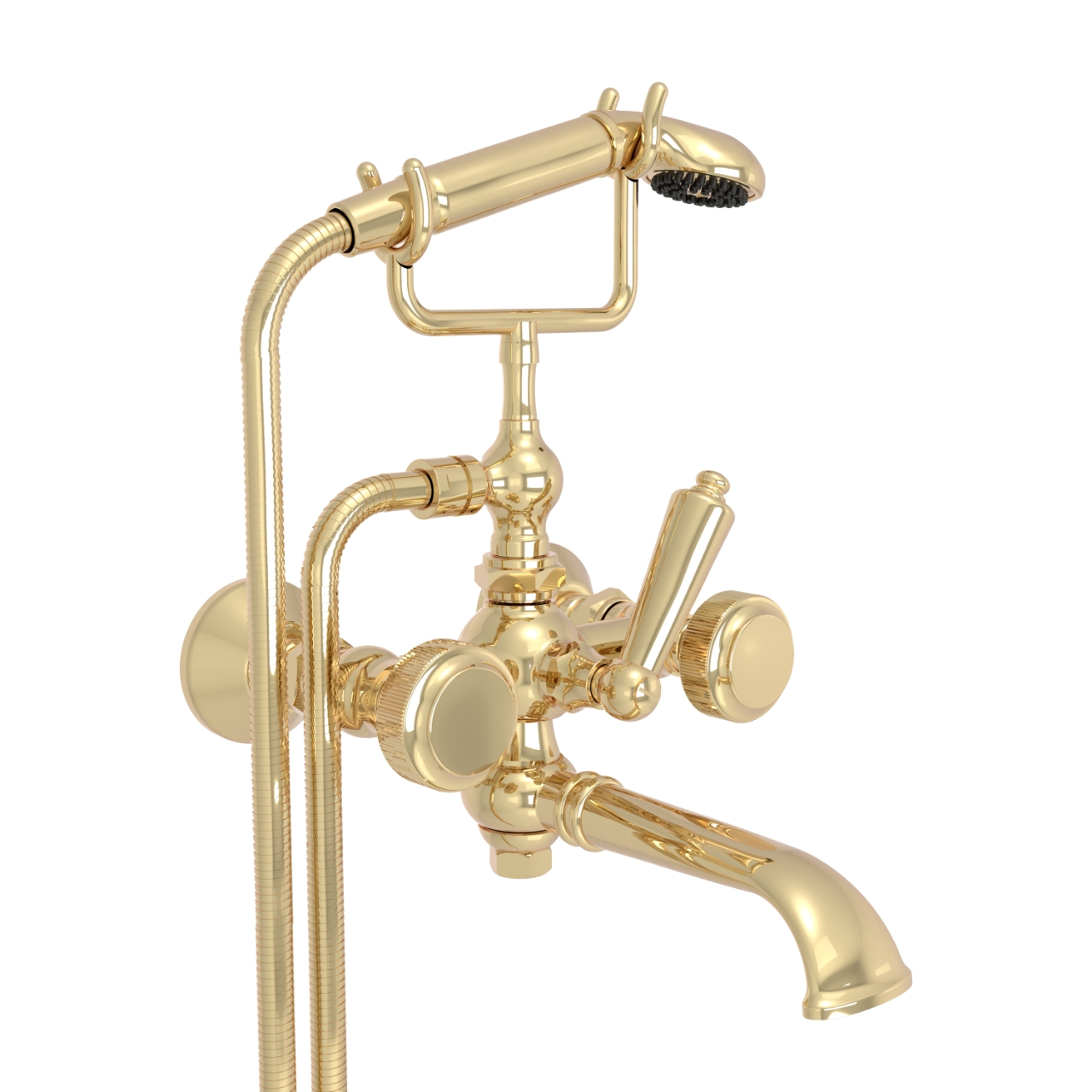

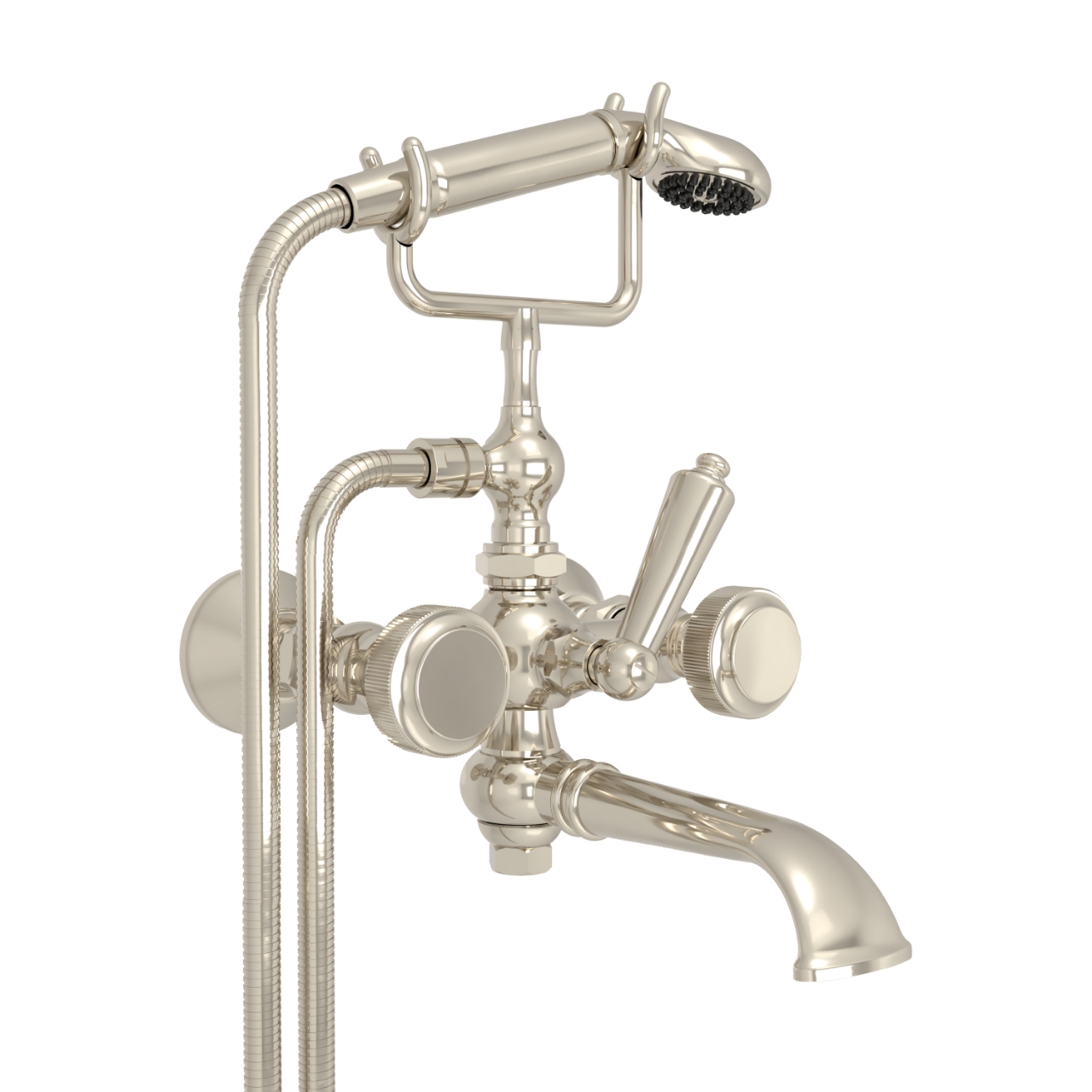

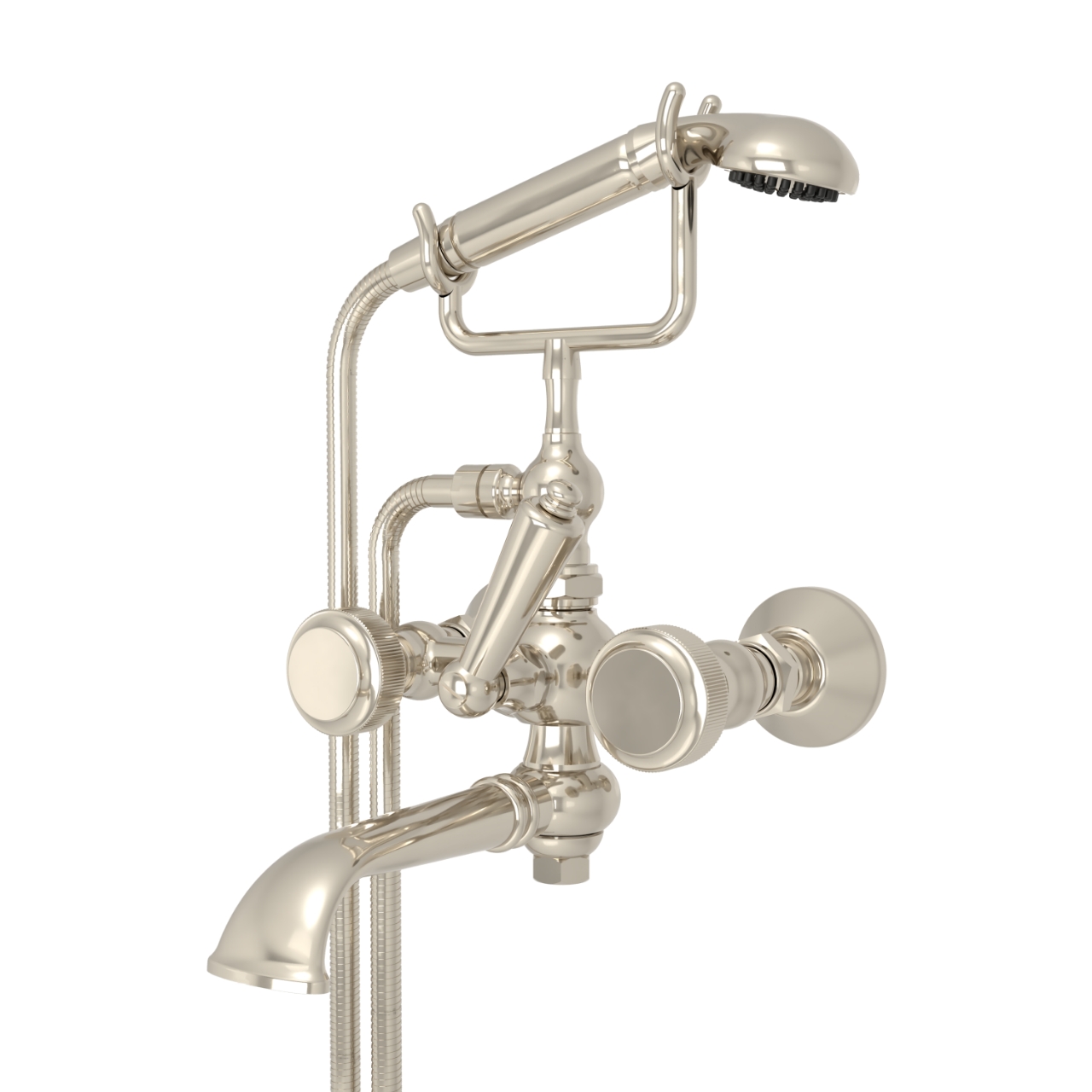

Knurl Exposed Tub System

With round Knurl handles that complement the exposed elements, they reflect the core design principles of a transitional and timeless design language.

To complement the traditional elegance of the exposed tub filler system a multitude of handles and levers from the Compas collections can be used.

By using the diverter lever, you can activate the free flow spout and hand held shower on cradle.

An ideal statement piece, the wall mounted application is perfect for smaller spaces or in cases where a tub must be used against a wall.

Share

Description

Knurl Exposed Tub System Details



HALLMARKS & COMPONENTS
TECHNICAL INFORMATION
  • Activated by a pair of all-metal levers controlling the volume and the temperature and delivering a fast water flow.
  • The tub spout can deliver a flow of up to 9 GPM at 45 PSI.
  • Complemented by a diverter with a handheld shower
  • Handheld delivers 1,75 GPM  at 45 PSI.
  • Metric standard available
  • Made with low lead brass; may include possible ABS components
  • Available in all finishes. All finishes are un-lacquered.
  • REF# 01906209
  • Refer to technical drawings
  • Wall connection: F. ¾” NPT
  • Uses ceramic cartridges
  • Recommended pressure: 45 PSI
  • California flow rate: 9 GPM
  • Flow rate for outside the USA: inquire
  • Deck mounted option available on short legs
  • For questions: please contact customer service at:         www.customerservice@compasstone.com

Technical Specs

Knurl – Exposed wall mount tub filler .75 inch NPT _ 01906209 specifications sheet

Finishes

At Compas we offer a large selection finishes. All our finishes are live and patinate over time. We are environmentally conscious and all our finishes adhere to the highest, strict and controlled ecological standards.

Review all finishes available by clicking here.
