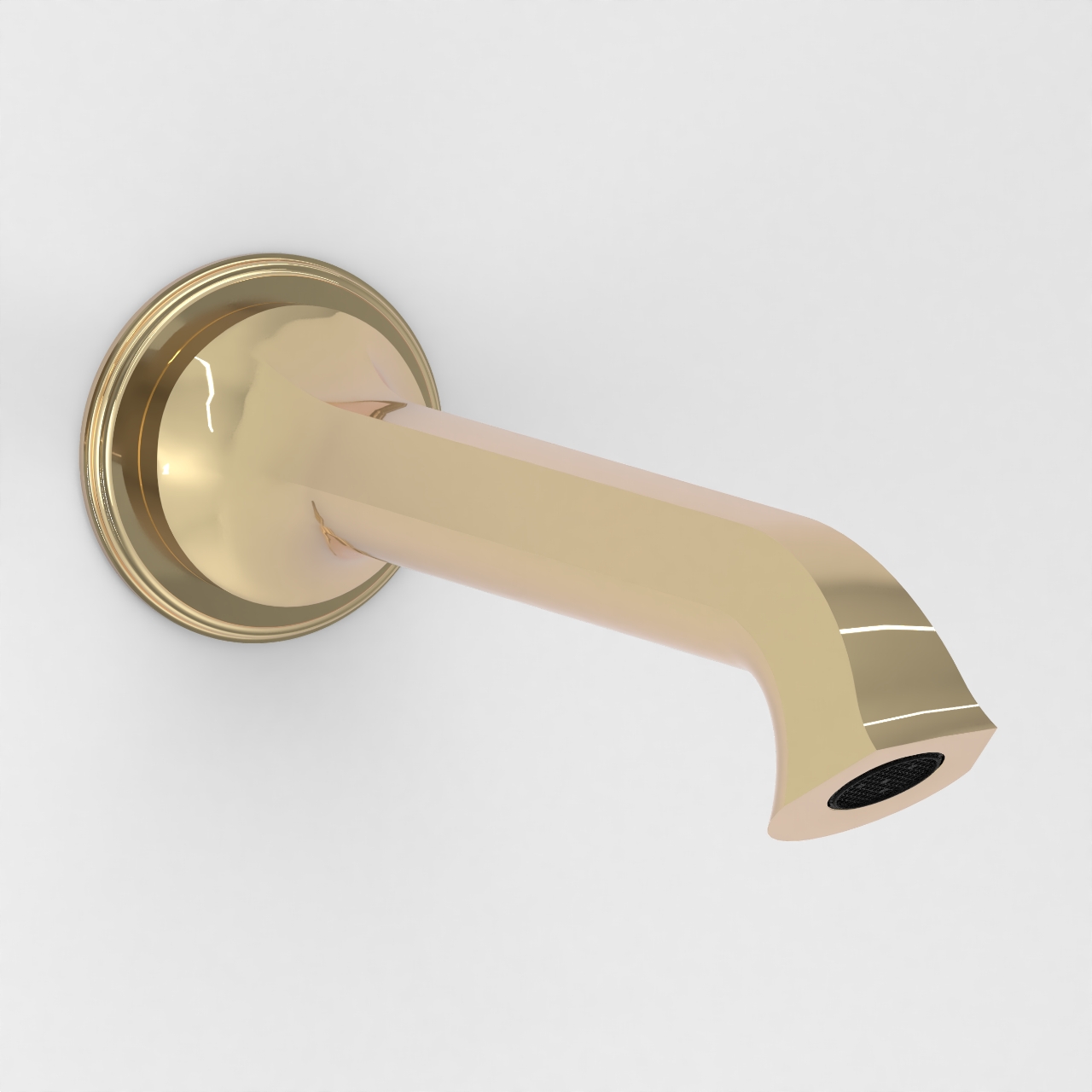

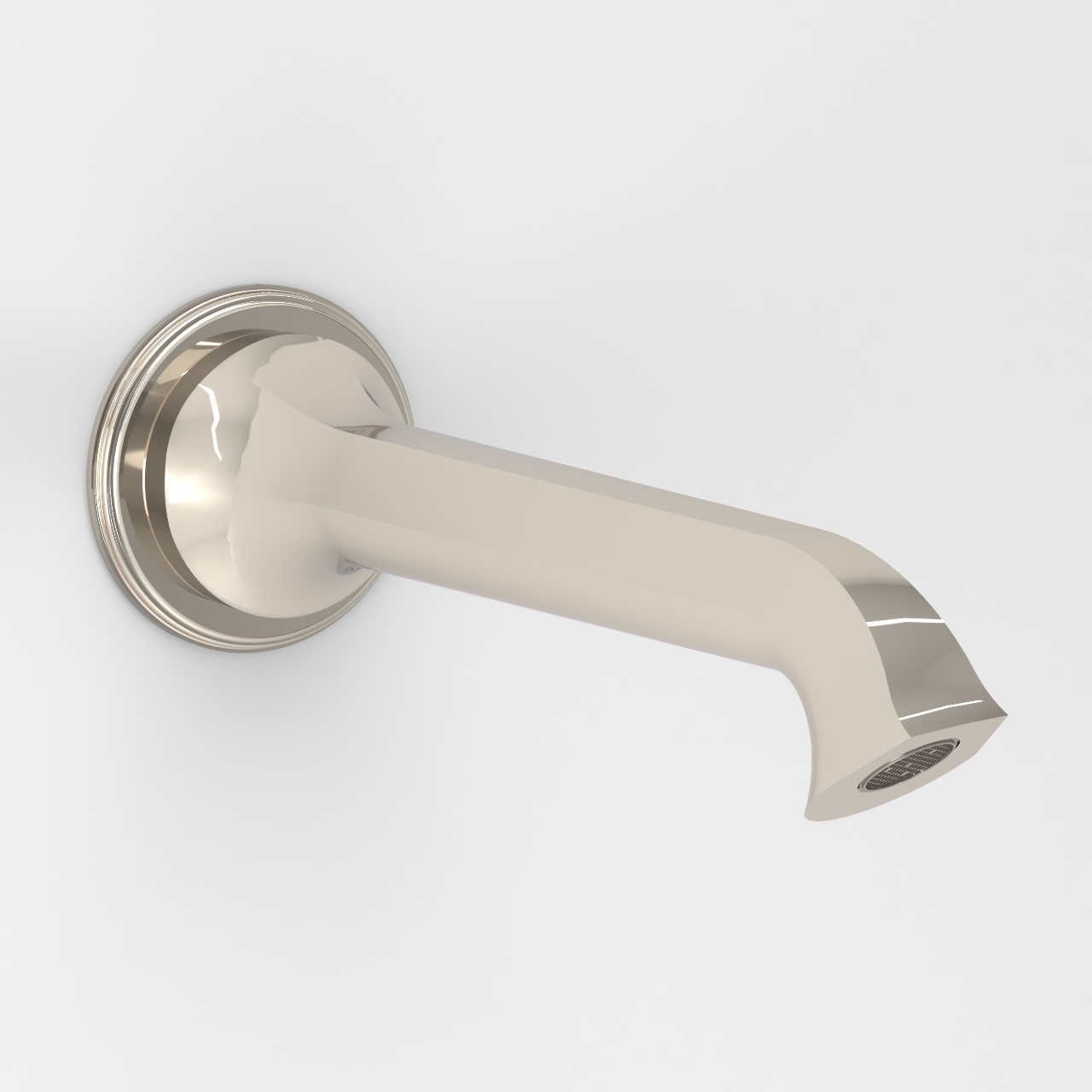

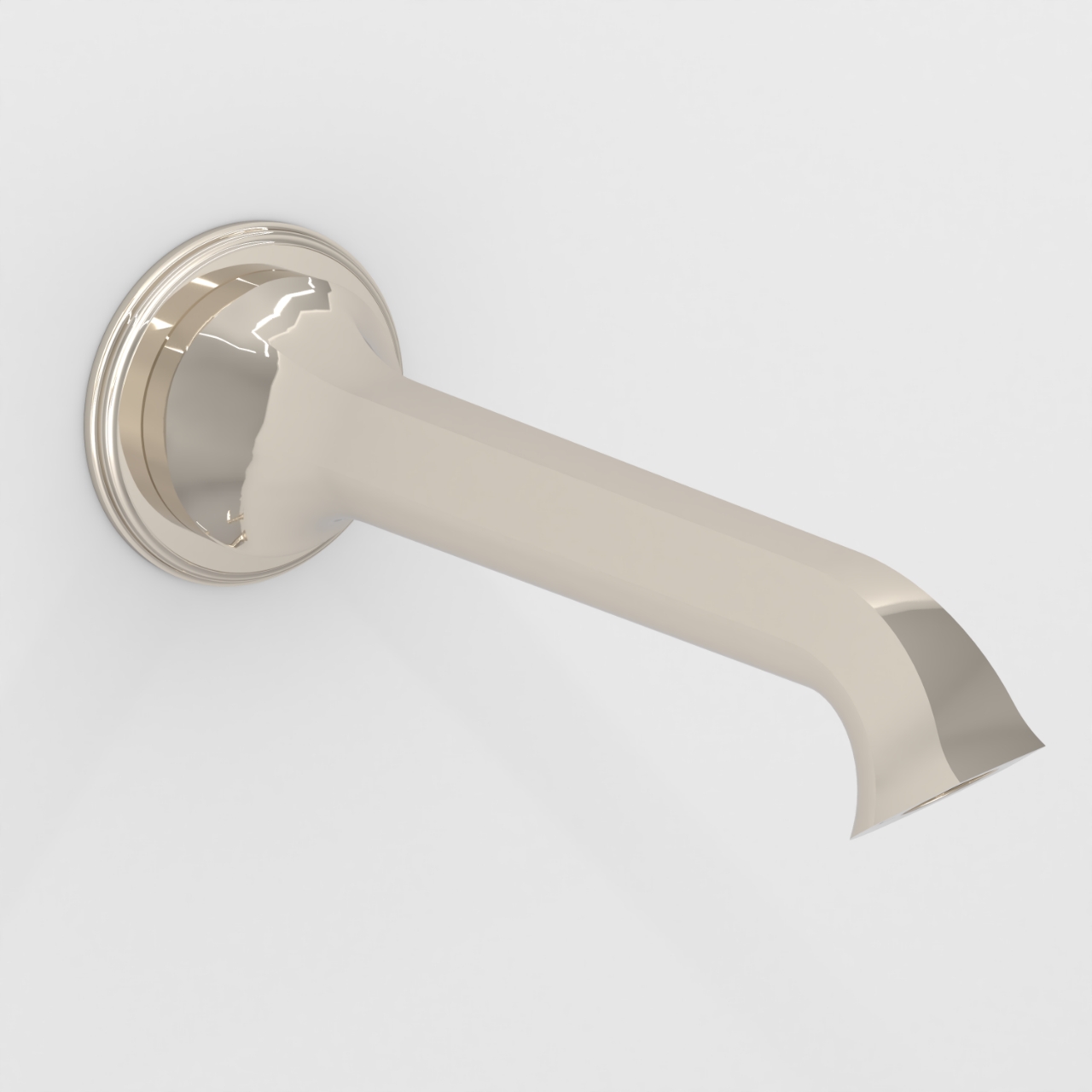

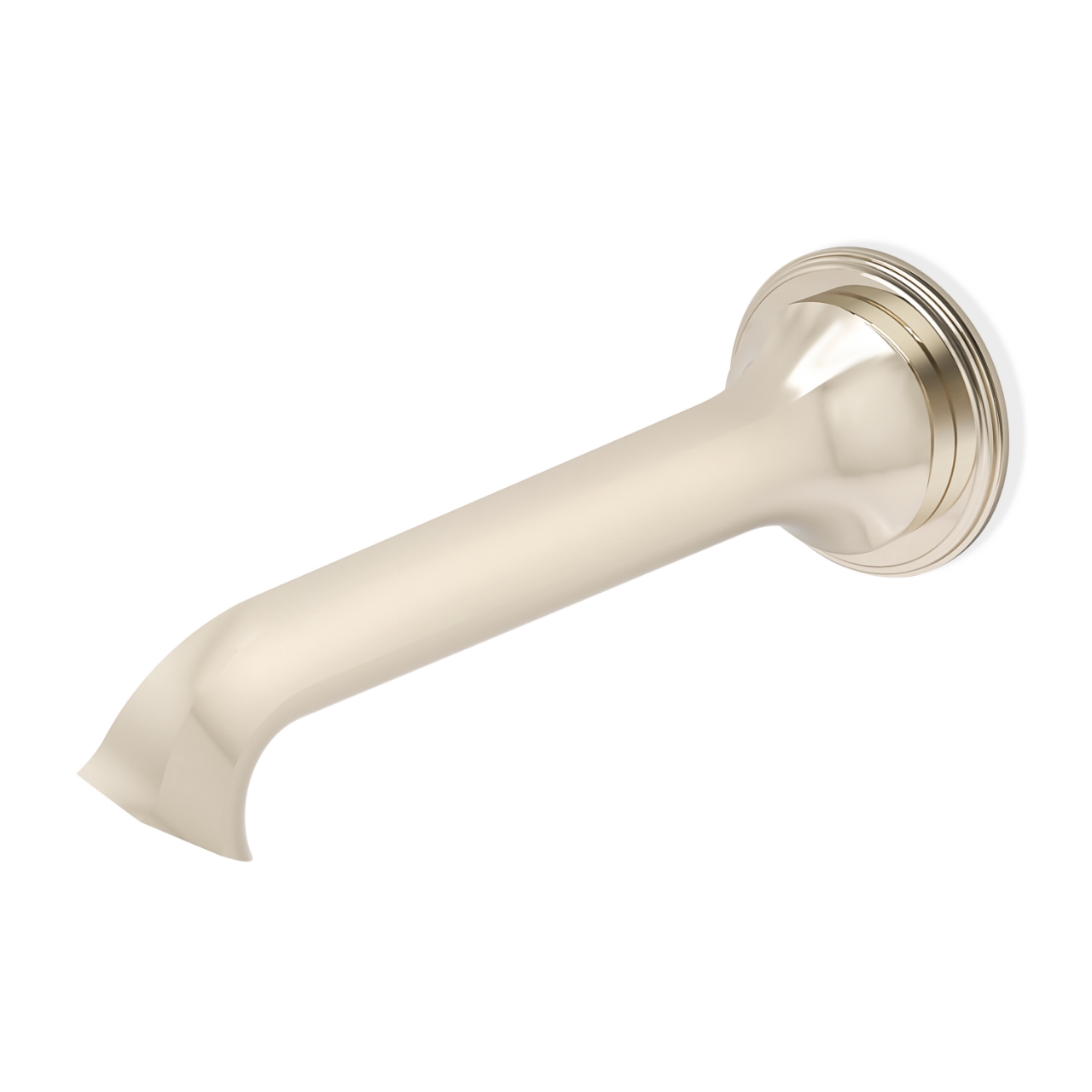

Villa Wall Mounted Spout

The Villa wall mounted spout is gracefully crafted with slender defining classic lines, mirror-like facets around its body, and a delicately tapering beak.

Available in ½” and ¾” NPT for vanities and tubs.

Share

Description

Villa Wall Mounted Spout 1/2″ Details



HALLMARKS & COMPONENTS
TECHNICAL INFORMATION
  • Wall-mounted ½” spout
  • Requires Two Handles Wall Mounted
  • Total projection : 8”
  • Width / diameter base: 2-3/4”
  • Available in all finishes. All finishes are live
  • Flow rate : 1.2 GPM at 60 PSI ( 4,5L/min @ 4.1 Bar)
  • Made with low lead brass; includes possible ABS components.
  • Ref # for ½”:  09506102
  1. In/Flow Connection: Female ½” NPT.
  2. Recommended Pressure: 45 PSI
  3. Recommended Flow: 1.2 GPM
  4. Concealed Aerator included
  5. Metric Threading available upon request
  6. Flow rate for outside the USA: inquire
  7. Deck mounted spout: available
  8. See technical drawings
  9. Weighted Average Lead content complies with 0.25%

3/4" Details

Villa Wall Mounted Spout 3/4″ Details



HALLMARKS & COMPONENTS
TECHNICAL INFORMATION
  • Wall-mounted 3/4” spout
  • Requires Two Handles Wall Mounted
  • Total projection : 8”
  • Width / diameter base: 2-3/4”
  • Available in all finishes. All finishes are live
  • Flow rate : 1.75 GPM at 60 PSI
  • flow restrictor : included
  • Made with low lead brass; includes possible ABS components.
  • Ref #  for ¾”:  09506270
  1. In/Flow Connection: Female ¾” NPT
  2. Recommended Pressure: 45 PSI
  3. Recommended Flow: 1.75 to 2.2 GPM
  4. Concealed Aerator included
  5. Metric Threading available upon request
  6. Flow rate for outside the USA: inquire
  7. See technical drawings
  8. Weighted Average Lead content complies with 0.25%

Technical Specs

Villa – Wall mounted spout .5 inch NPT _ 09506102 specifications sheet

Villa – Wall mounted spout .75 inch NPT _ 09506270 specifications sheet

Finishes

At Compas we offer a large selection finishes. All our finishes are live and patinate over time. We are environmentally conscious and all our finishes adhere to the highest, strict and controlled ecological standards.

Review all finishes available by clicking here.
