Description

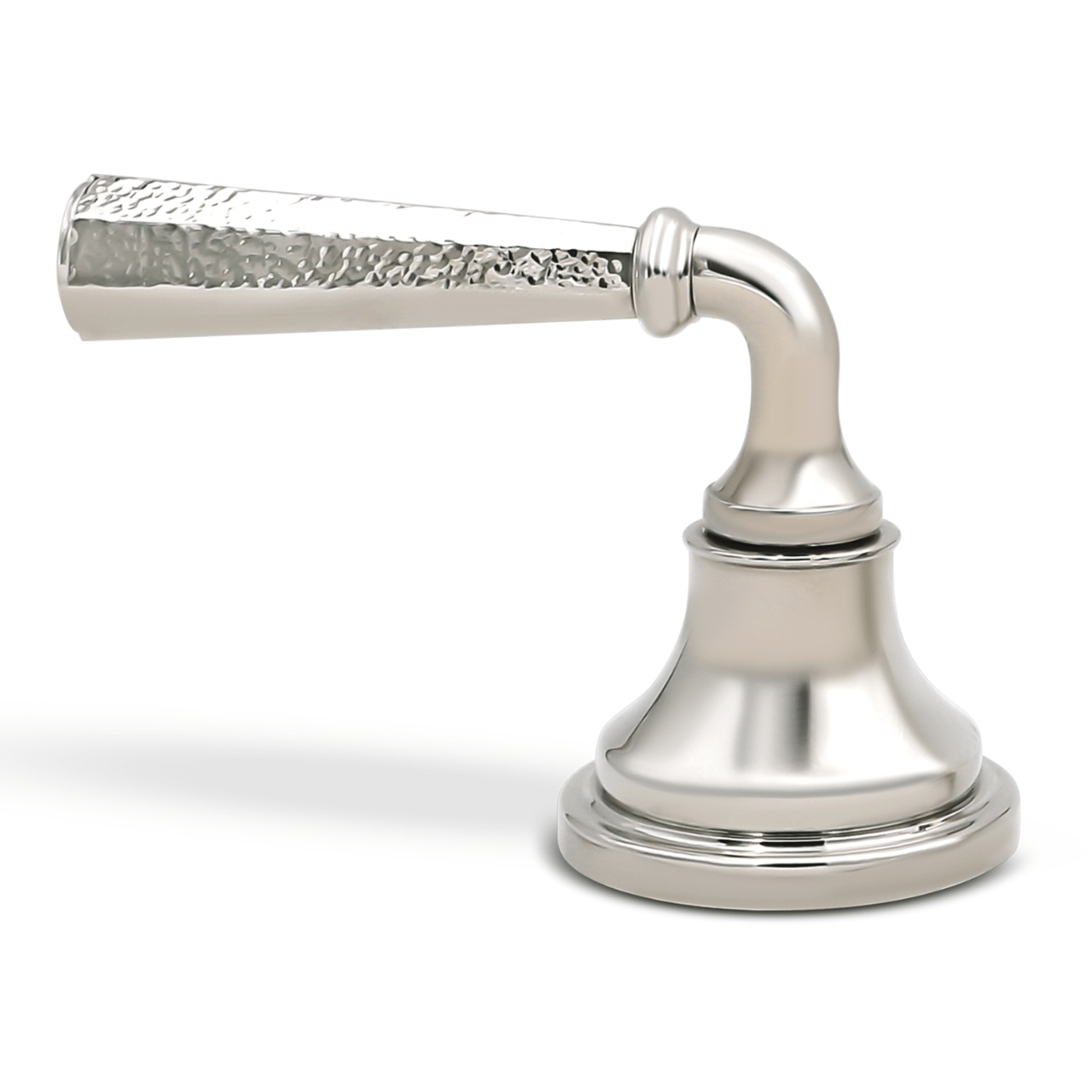

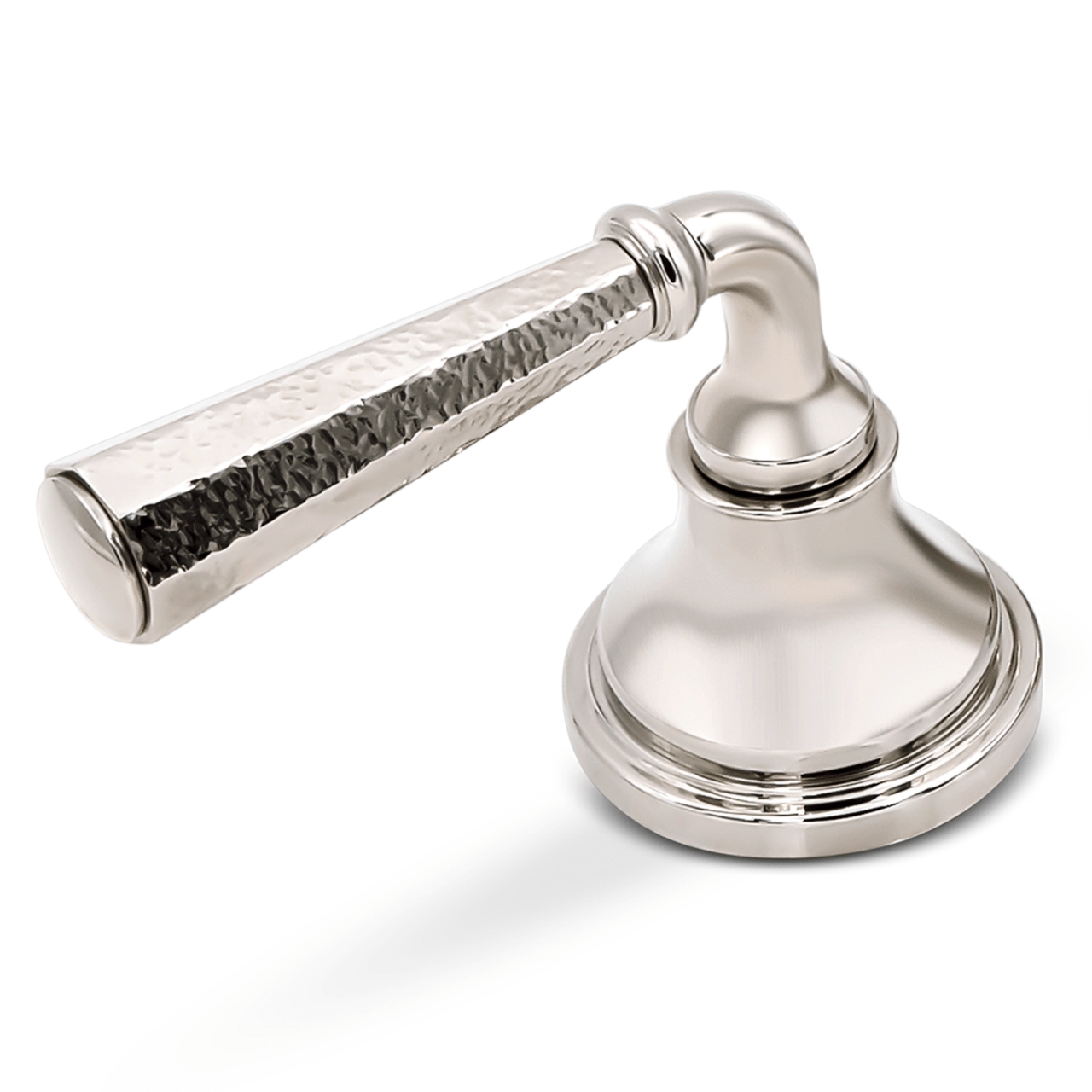

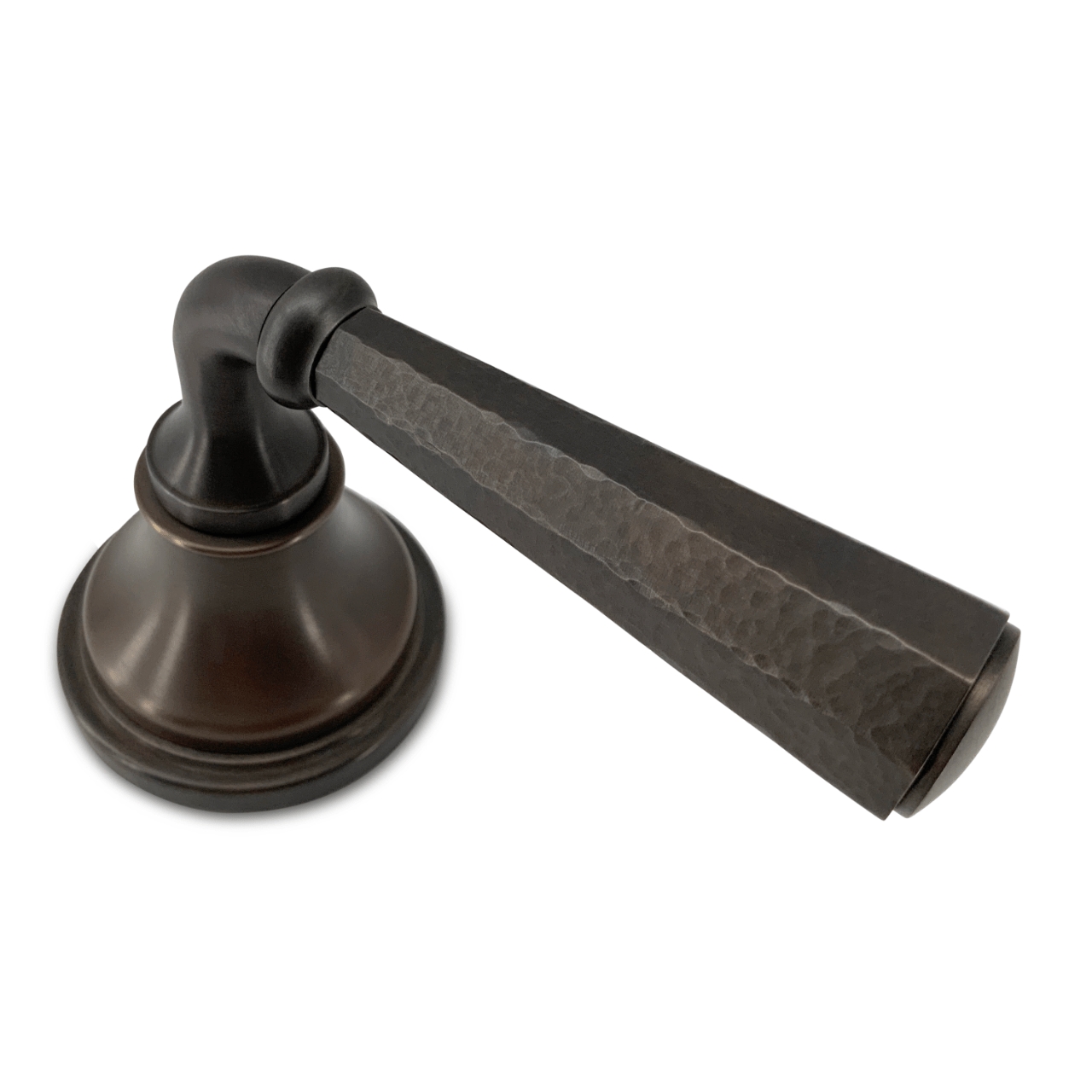

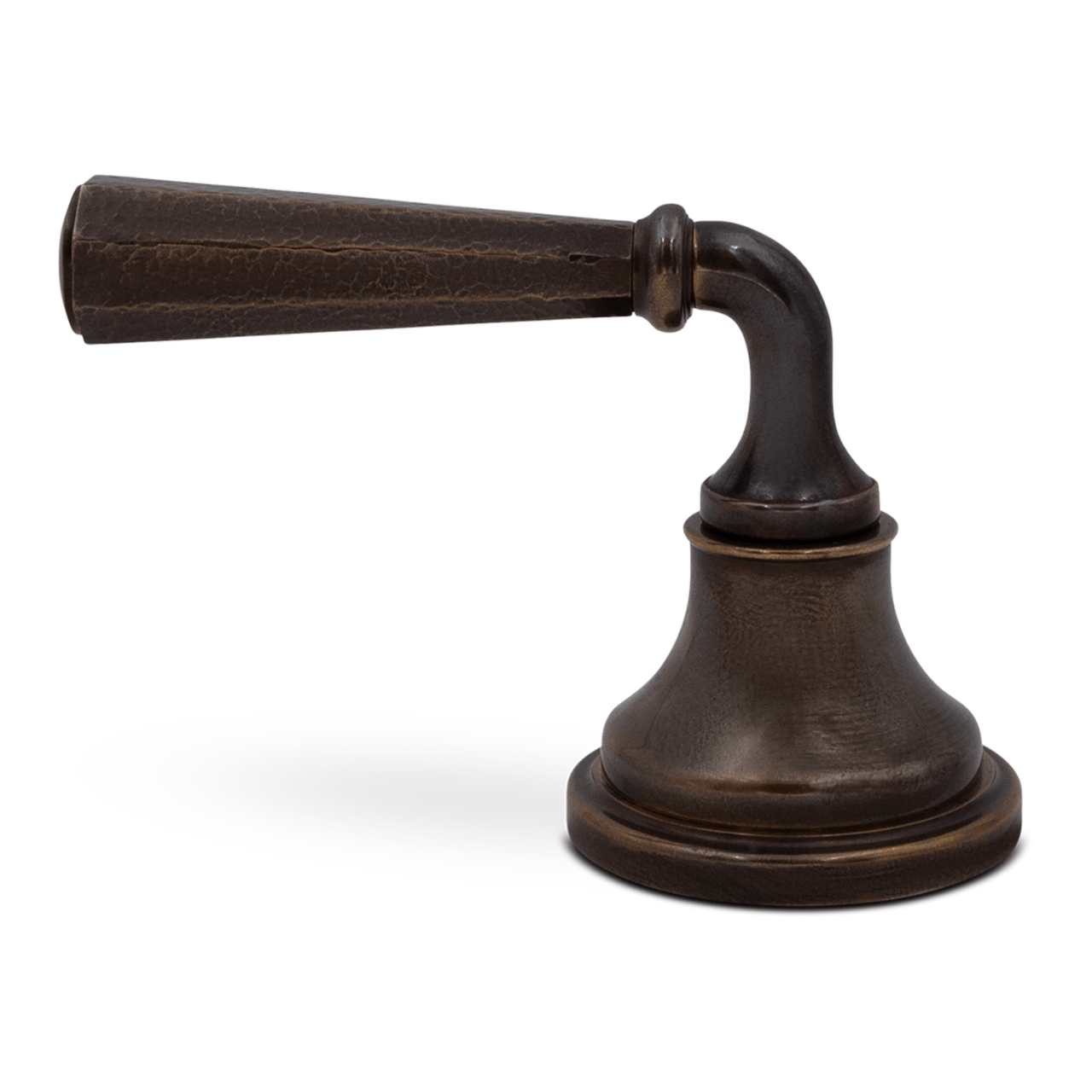

Montecito Deck Mounted Lever 1/2″ Details
HALLMARKS & COMPONENTS
|
TECHNICAL INFORMATION
|

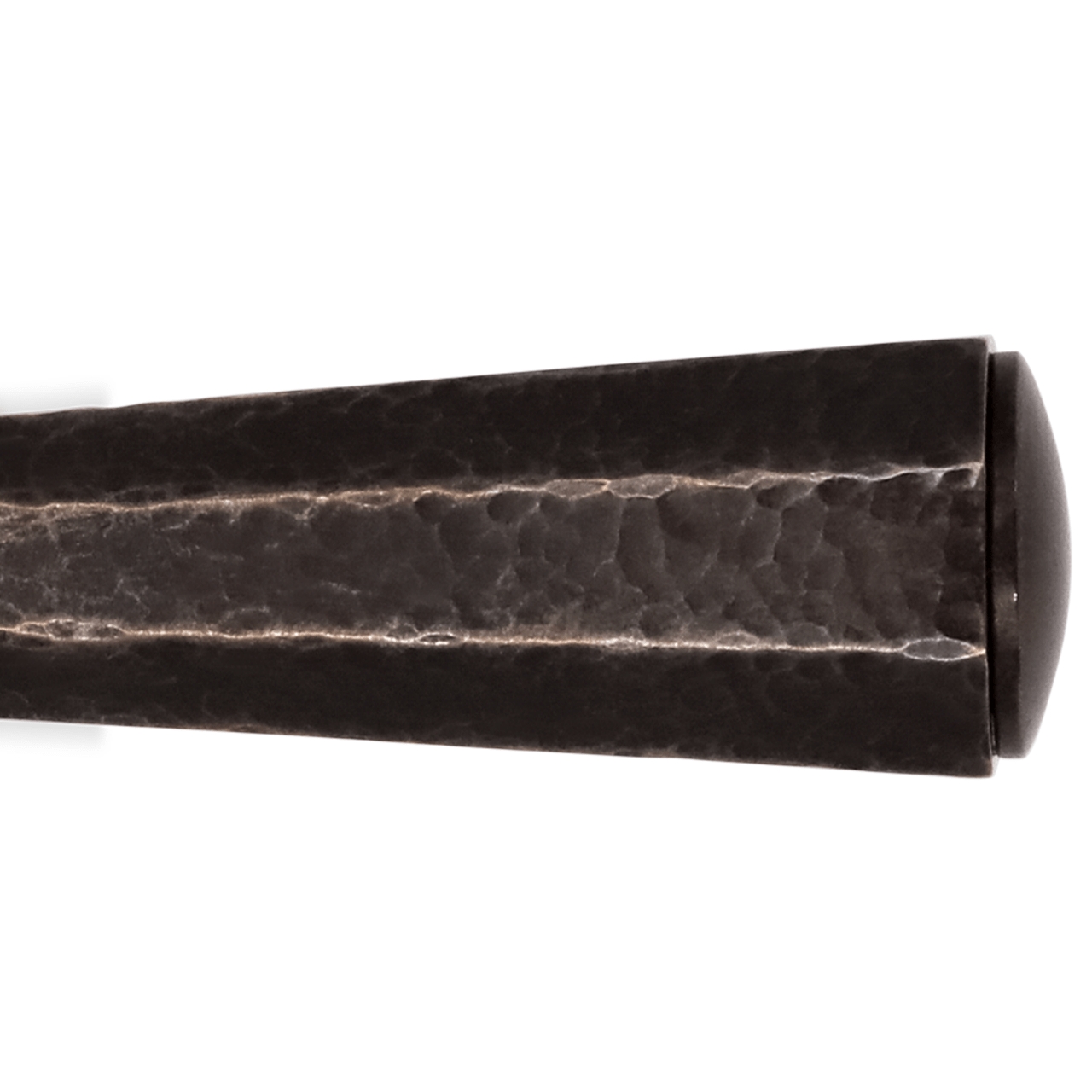

- Made and hammered by hand
- Deck mounted ½” valve included
- the lever turns ¼ forward – Left and Right hand supplied-
- Total height: 3.¾”
- Width: 5” ⅛” at the lever
- Base: 2 ½” diameter
- Available in all finishes. All finishes are unlacquered
- Flow rate : 1.2 GPM recommended ( California ) at 45 PSI
- Valves: ceramic disk
- Made with low lead brass; includes possible ABS component
- Ref. #: right lever 017306721
- Ref. #: left lever 01736721
|
- Deck maximum thickness: 1.75” ( 4.5 cm )
- Hole diameter: 1.1/8” ( 3 cm )
- Water pressure maximum: 75 PSI (5 Bars)
- max flow 12 GPM at 75 PSI
- Recommended pressure: 45PSI
- flow: 9GPM at 45 PSI
- Connection: wire flex provided; ½” connector
- Handle spread: max. 11inches
- Metric threading available on request
- Flow rate for outside the USA: inquire
- all levers are fitted with rotation brakes
- See technical drawings
|
3/4" Details
Montecito Deck Mounted Lever 3/4″ Details
HALLMARKS & COMPONENTS
|
TECHNICAL INFORMATION
|
- made and hammered by hand
- Deck mounted ¾” valve included
- the lever turns ¼ forward – Left and Right hand supplied-
- Total height: 3.¾”
- Width: 5” ⅛” at the lever
- Base: 2 ½” diameter
- Available in all finishes. All finishes are unlacquered
- Flow rate: up to 9 GPM at 45 PSI
- Valves: ceramic disk
- Made with low lead brass; includes possible ABS components.
- Ref. #: right hand 017303725
- Ref. #: left Hand 013006726
|
- Deck maximum thickness: 1.75” ( 4.5 cm )
- Hole diameter: 1.1/8” ( 3 cm )
- Water pressure maximum: 75 PSI (5 Bars)
- unrestricted flow: 12 GPM at 75 PSI
- Recommended pressure: 45PSI
- recommended flow: 9 GPM at 45 psi
- Connection: ¾” NPT
- flow rate: restriction applies in California
- Metric threading available on request
- all levers are fitted with rotation brakes
- See technical drawings
|
Finishes
At Compas we offer a large selection finishes. All our finishes are live and patinate over time. We are environmentally conscious and all our finishes adhere to the highest, strict and controlled ecological standards.
Review all finishes available by clicking here.
