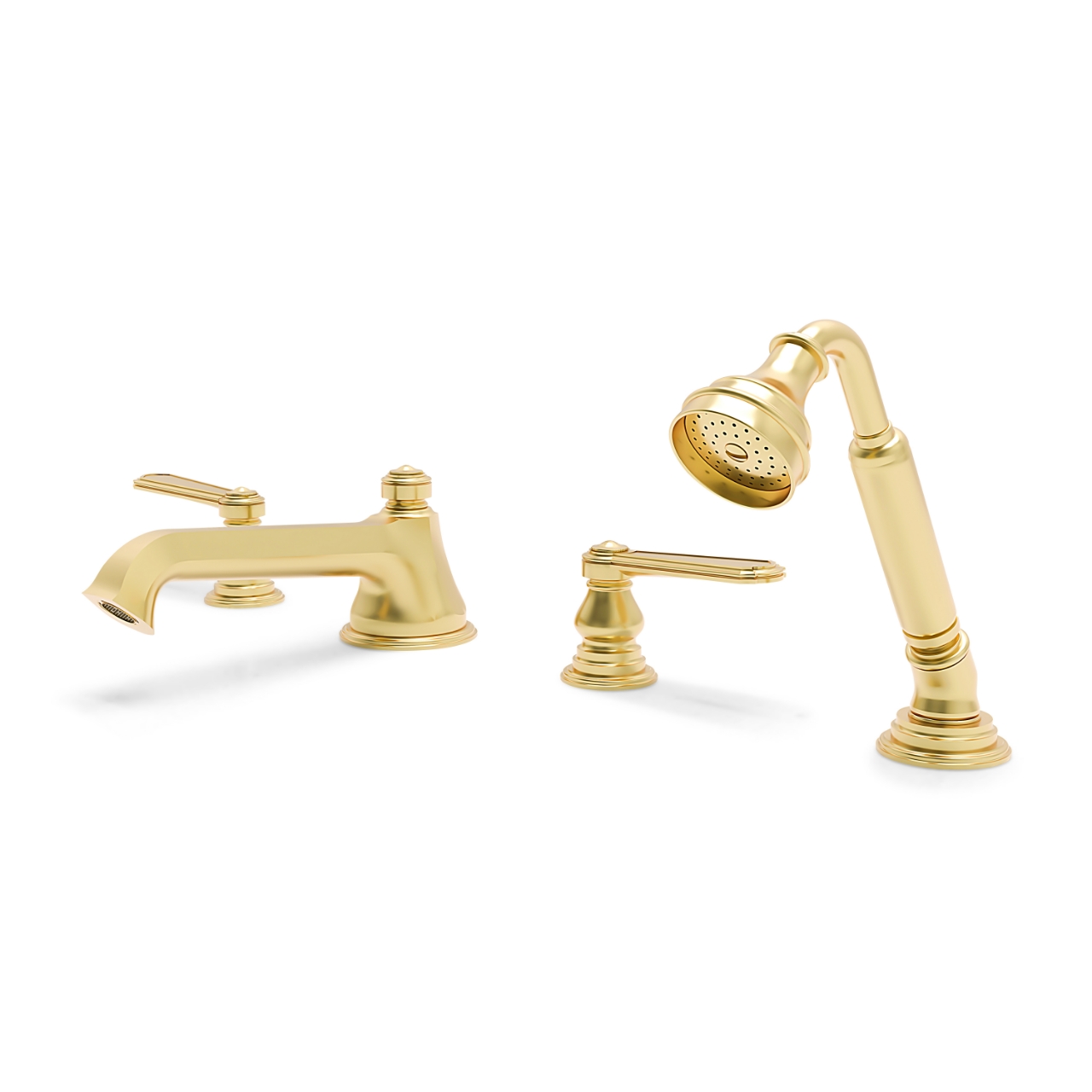

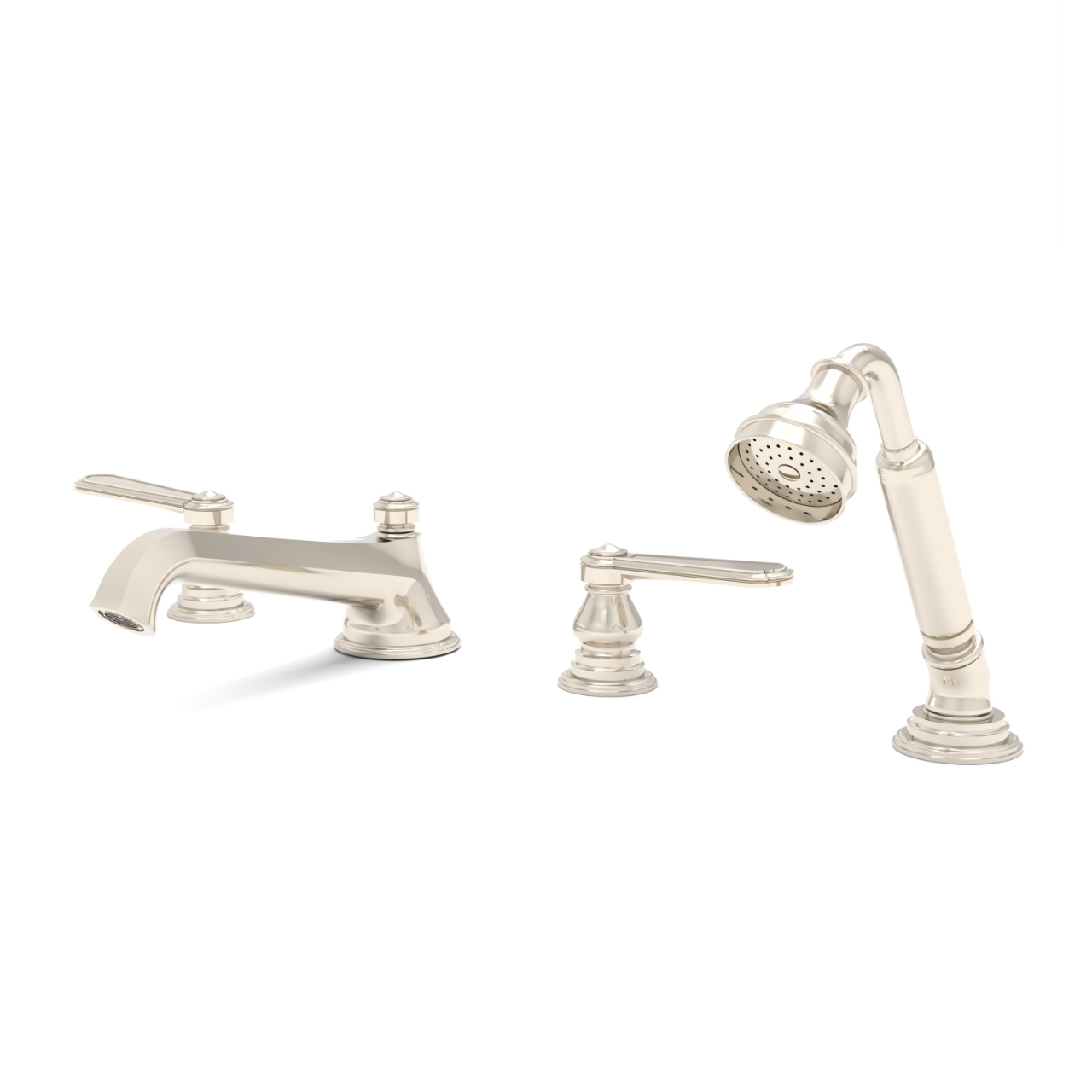

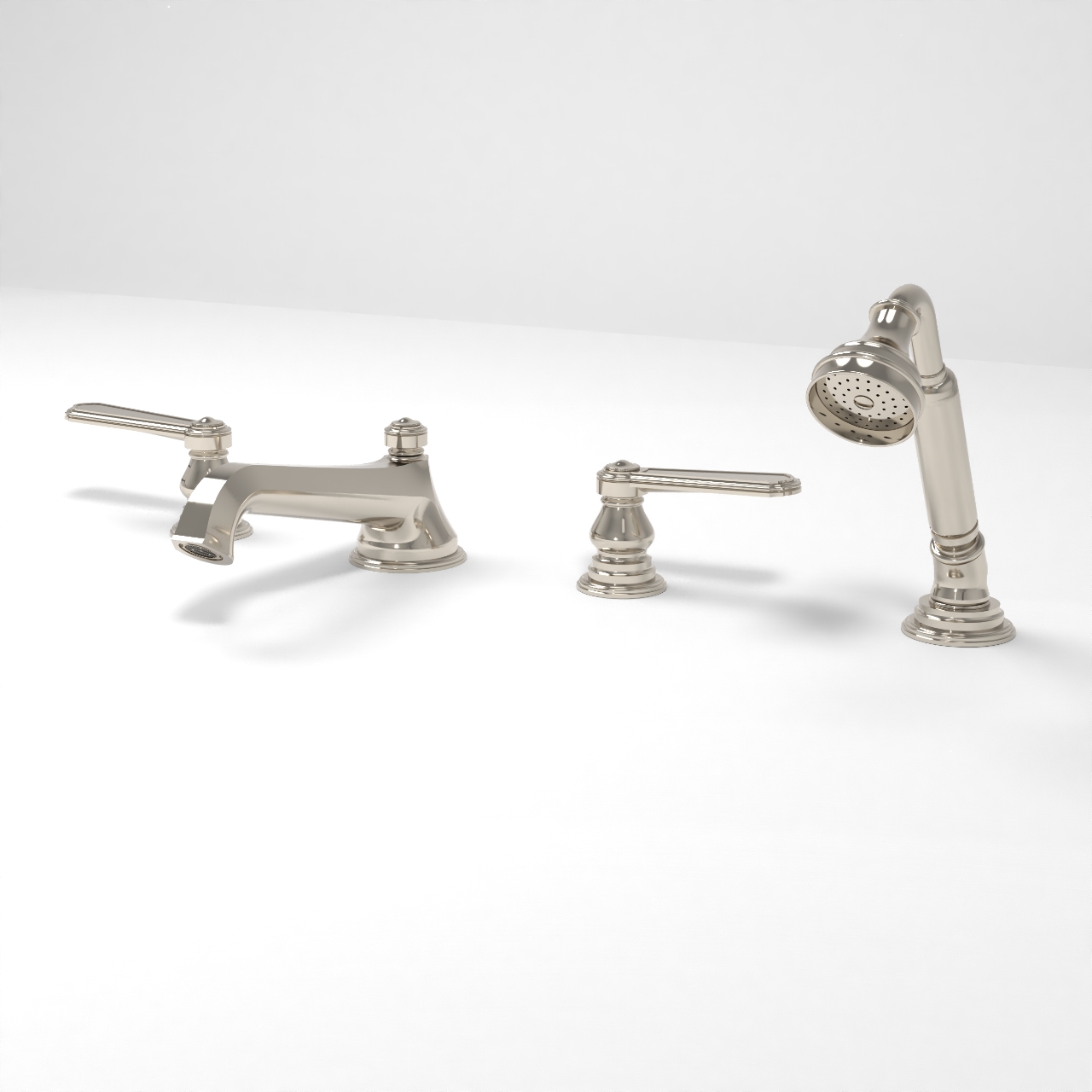

Villa Deck Mounted Tub System

The Villa deck mounted ensemble creates a sense of tranquility with its baluster shaped design and supporting mirrored levers. It is aimed to provide a calming and uplifting experience in a bath lounge setting.

With a built-in diverter for handheld showers.

See components
– Deck-Mount Handle

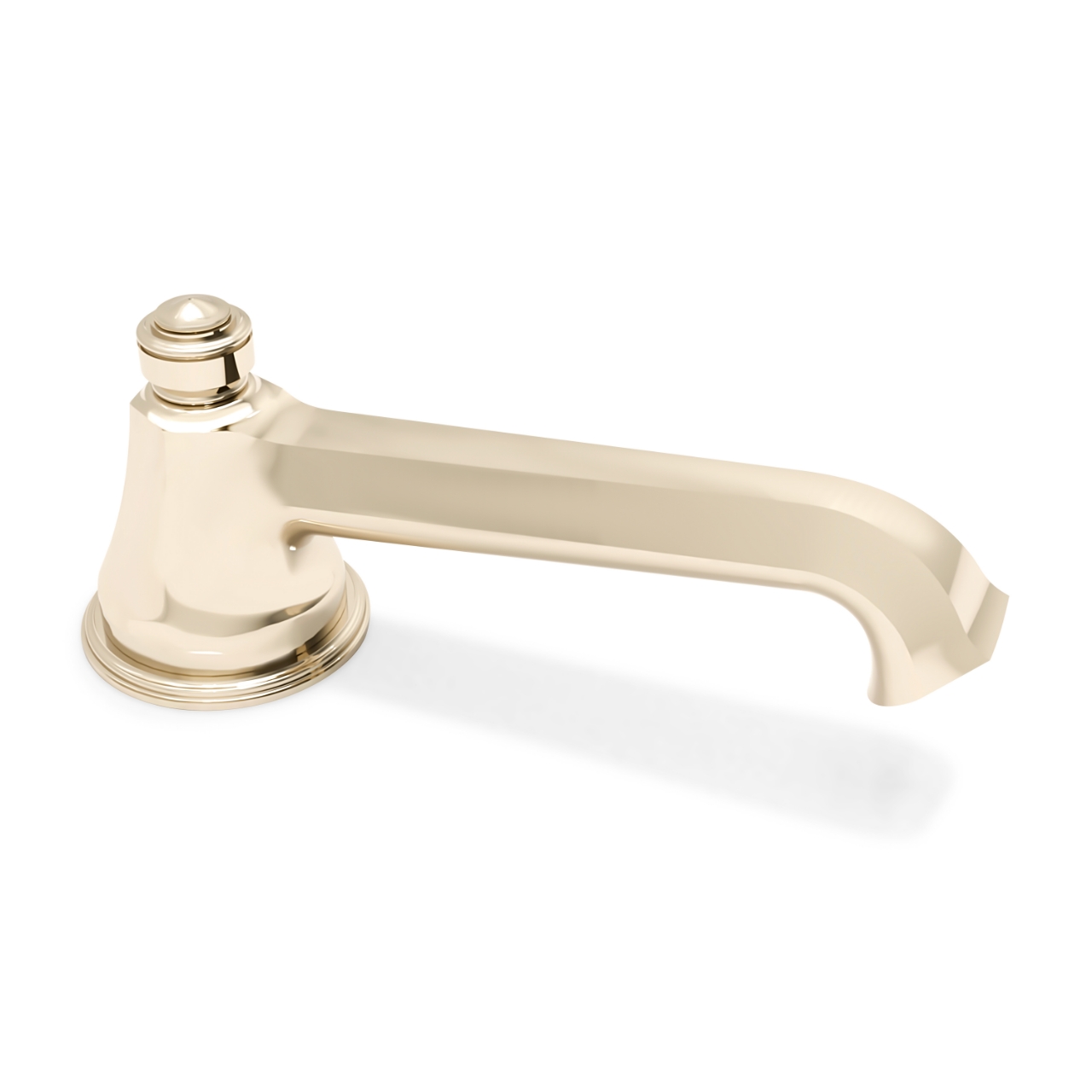

– Deck-Mount Diverter Spout
– Handheld

REQUEST INFORMATION

Villa-Tub-Systems-Deck-Mount-V2

Share

Description

Villa Deck Mounted Tub System Details



HALLMARKS & COMPONENTS
TECHNICAL INFORMATION
  • Activated by a pair of handles controlling the volume and the temperature
  • Tub spout includes a diverter and delivers a flow up to 11 GPM.
  • Restrictions apply in California.
  • Handheld delivers a flow 1,75 GPM at 45 PSI (6.6 liters per minutes at 3 bars).      /
  • Handled comes with a 78” long flex
  • Metric standard available
  • Ceramic valves are included.
  • Made with low lead brass; may include possible ABS components
  • Available in all finishes. All finishes are un- lacquered.
  1. Refer to technical drawings
  2. Recommended pressure: 45 PSI (3 bars)
  3. Tub spout delivers up to 11 GPM. Restrictions applies in California State
  4. Flow rate for outside the USA: inquire
  5. Other flow options available for outside the state of California
  6. Wall mounted configuration available
  7. For questions please contact us at: customerservice@compasstone.com

Finishes

At Compas we offer a large selection finishes. All our finishes are live and patinate over time. We are environmentally conscious and all our finishes adhere to the highest, strict and controlled ecological standards.

Review all finishes available by clicking here.
